ParCon - light-band sensors
The company Baumer is an international business with a passion for sensor technology, encoders, measuring instruments and components for automated image processing. Through a very strong local presence in 39 subsidiaries and 19 countries, Baumer is able to be close to the customers. The outstanding Baumer quality of the vast portfolio of sensors and instruments keeps the company on the road of success in tough international competition. Various expert juries awarded Baumer with national and international prizes for innovation, design and quality as a token for quality and pioneering spirit.
In the ParCon light-band sensors, the transmitter and receiver (reflector) are combined in one housing and constitute a light barrier. When the incident beam is interrupted by an external object, the sensor output signal is switched or changed.
Measuring the shape and diameter of cylindrical objects |
Technology. In light-band sensors, the light of the integrated illumination is reflected by an opposite foil and received by the diode array. The length of the diode array together with the optics determines the measuring field size. Thanks to the narrow diode array, the measuring field is only a narrow strip.
If an object shadows a part of the light, no light will fall on the corresponding part of the diode array. The integrated micro-controller analyzes the dark areas and the dark-bright transitions and calculates the corresponding analog value depending on the measuring mode. The light-band sensor has a parallel radiation field, which makes an object appear to be the same size at any measuring distance. |
The sensors are designed for direct detection of objects and measurement of their sizes. The laser emitter and the receiver are in the same housing, with the outgoing thin laser beam reflected from the detection object. A thin laser beam makes it possible to detect even very small objects and measure their dimensions. |
|
|
Increased productivity thanks to fast and reliable detection. The parallel radiation field makes an object appear the same size at any measuring distance. The high measuring frequency up to 1800 Hz with an analog sensor allows detection of fast movements. Thanks to the high switching frequency of 4 kHz, small, fast moving objects are also detected reliably. |
Reliable recognition and counting of small objects. |
Cost effective and easy-to-install laser forklift sensors for small conveyors, packaging machines, etc. The optical forklift detector detects objects and materials in a non-contact way and notifies them of their presence with a switching signal. |
|
| Name | Documents | Features | Measurement distance | Exit |
|---|---|---|---|---|
| ZADM 034I220.0021 Request quote |
Datasheet Manual |
object edge monitoring measurement |
0...200 mm | 4...20 mA |
|
ZADM 034I220.0022 Request quote |
Datasheet Manual |
object edge monitoring measurement |
0...200 mm | 4...20 mA |
|
ZADM 034I240.0001 Request quote |
Datasheet Manual |
object edge monitoring measurement |
up to 40 mm | 4...20 mA |
|
ZADM 034I240.0021 Request quote |
Datasheet Manual |
object edge monitoring measurement |
up to 40 mm | 4...20 mA |
|
ZADM 034P240.6901 Request quote |
Datasheet Manual |
object edge monitoring teach-in, switching |
up to 40 mm | logics PNP |
|
ZADM 034P240.6921 Request quote |
Datasheet Manual |
object edge monitoring teach-in, switching |
up to 40 mm | logics PNP |
| - | - | - | - | - |

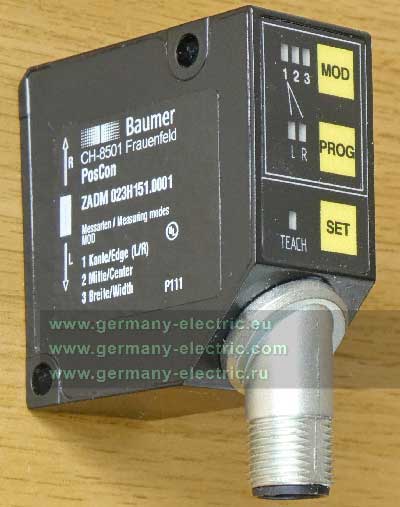

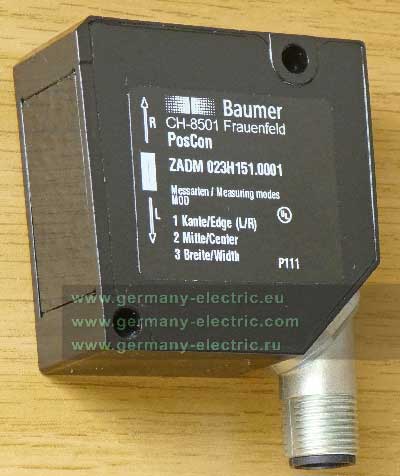

| ZADM 023H151.0001 | ZADM 023H151.0002 | ZADM 023H151.0011 | ZADM 023H151.0012 | ZADM 023H300.0001 |
| ZADM 023H300.0002 | ZADM 023H300.0011 | ZADM 023H300.0012 | ZADM 023H351.0001 | ZADM 023H351.0002 |
| ZADM 023H351.0011 | ZADM 023H351.0012 | ZADM 023H871.0001 | ZADM 023H871.0002 | ZADM 023H871.0011 |
| ZADM 034I220.0021 | ZADM 034I220.0022 | ZADM 034I240.0001 | ZADM 034I240.0002 | ZADM 034I240.0021 |
| ZADM 034I240.0023 | ZADM 034P240.6901 | ZADM 034P240.6921 | - | - |
