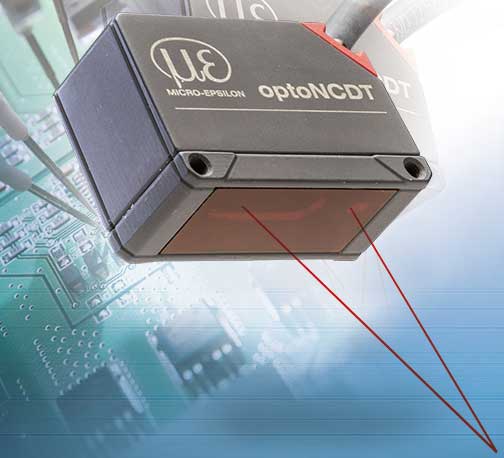

Compact laser triangulation displacement sensoroptoNCDT 1220

Compact laser triangulation displacement sensor
optoNCDT 1220

Request quote
Made in Germany

The optoNCDT 1220 is the entry-level model intended for industry automation. This compact laser triangulation sensor precisely measures displacement, distance and position. Due to its extremely compact size with integrated controller, the sensor can also be installed in restricted spaces. Based on an excellent price/performance ratio, this sensor is ideally suitable measurement tasks involving large quantities. Therefore, the sensor can be used in all fields of automation technology, e.g., in machine building or electronics production.

  • Measuring ranges 10 / 25 / 50 mm
  • Linearity from 10 µm
  • Repeatability from 3.7 µm
  • Measuring rate 1 kHz
  • Compact size with integrated electronics
  • 3 m integrated sensor cable with open ends
  • Trigger input, Analog output
ILD1220-10 ILD1220-25 ILD1220-50
ILD1220-100 ILD1220-200 ILD1220-500

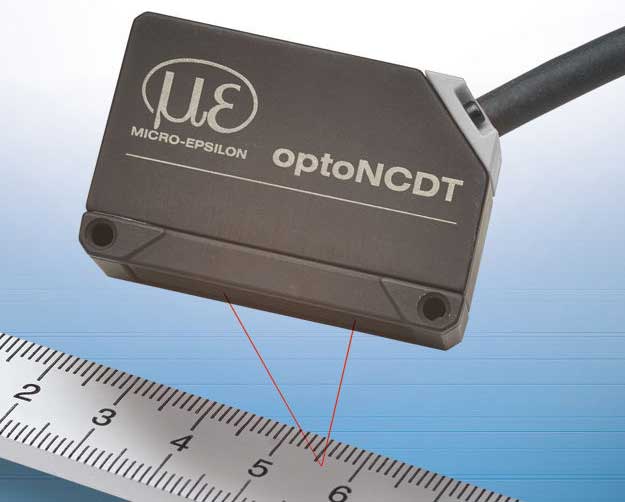

Compact laser triangulation displacement sensoroptoNCDT 1320

Compact laser triangulation displacement sensor
optoNCDT 1320

Request quote
Made in Germany

The optoNCDT 1320 is a new laser triangulation sensor with compact size for displacement, distance and position measurements. Due to its extremely compact size including integrated controller, the sensor can also be integrated into restricted installation space. Due to its low weight, the optoNCDT 1320 is ideally suitable for applications where high accelerations occur e.g. on the robot arm or in pick-and-place machines. The optoNCDT 1320 offers high accuracy and adjustable measuring rates up to 2kHz. The Auto Target Compensation (ATC) provides stable distance signal control regardless of target color or brightness. Very small objects can be detected reliably due to the small measurement spot size.

  • Measuring ranges 10/25/50/100 mm
  • Linearity from 10 µm
  • Repeatability from 1 µm
  • Measuring rate 2kHz
  • Compact size with electronics
  • 3 m integrated sensor cable
  • Analog output, Trigger input
  • RS422 interface
ILD1320-10 ILD1320-25
ILD1320-50 ILD1320-100

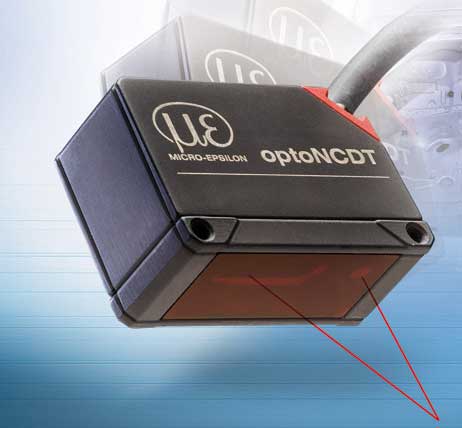

 Smart laser triangulation displacement sensoroptoNCDT 1420

Smart laser triangulation displacement sensor
optoNCDT 1420

Request quote
Made in Germany

The optoNCDT1420 offers a unique combination of speed, size, performance and application versatility for displacement, distance and position measurements. The compact triangulation sensor achieves a high measurement accuracy and measuring rates of up to 4kHz. The selectable connector type, i.e. cable or pigtail, together with compact size reduce the sensor installation effort to a minimum. Just like all triangulation sensors from Micro-Epsilon, the optoNCDT 1420 provides an intelligent surface regulation. The Auto Target Compensation (ATC) ensures stable measurement results regardless of changing surface colors or brightness. The high-performance optical system generates a small light spot which enables to even detect smallest components reliably.

  • Measuring ranges 10 / 25 / 50 / 100 / 200 / 500 mm
  • Linearity from 8 µm
  • Repeatability from 0,5 µm
  • Measuring rate 4 kHz
  • Compact size with integrated electronics
  • 3 m integrated sensor cable
  • Scalable analog output, Trigger input
  • RS422 interface
  • Predefined and individual presets in web interface
ILD 1420-10 ILD 1420-25 ILD 1420-50
ILD 1420-100 ILD 1420-200 ILD 1420-500
ILD 1420-10 CL1 ILD 1420-25 CL1 ILD 1420-50 CL1
