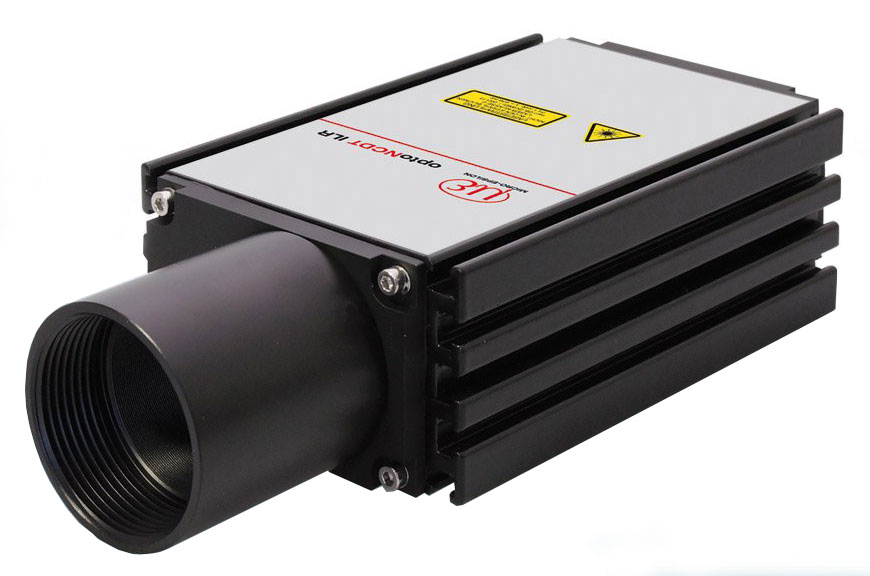

Laser distance measuring deviceoptoNCDT ILR1030optoNCDT ILR1031

Laser distance measuring device
optoNCDT ILR1030
optoNCDT ILR1031

Request quote
Made in Germany

optoNCDT ILR 1030 / 1031 laser distance sensors operate according to the time-of-flight technology. Based on this technology, these sensors provide accurate, reliable and unambiguous as well as reproducible measurement results regardless of ambient conditions such as surface properties, dark colors or ambient light. The ILR103x/LC models use a measuring laser with laser class 1.

ILR1030
Measuring range target gray with 10% reflection = 0.2 ... 5 m
target white with 90% reflection = 0.2 ... 15 m
target with reflector film (foil) = 10 ... 50 m
Measuring uncertainty ±20 mm
Resolution 1 mm, freely scalable
Reproducibility 5 mm
Measuring time 10 ms
Laser class semiconductor laser (red 660 nm)
Operating temperature -30 … + 50 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Switching output Programmable switching, maximum load 0.5 A
Analog output Programmable distance range limits,
4 mA to 20 mA, adjustable
Size 194 mm x 99 mm x 51 mm
Weight 90 g
Protection class IP 65

Laser distance measuring deviceoptoNCDT ILR1181-30ILR1182-30ILR1183-30

Laser distance measuring device
optoNCDT ILR1181-30
ILR1182-30
ILR1183-30

Request quote
Made in Germany

RS232, RS422

лого ProfiBus
лого SSI

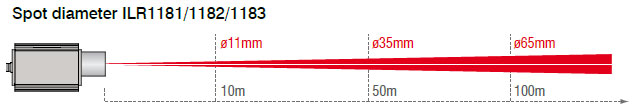

optoNCDT ILR 1181 / 1182 / 1183 sensors are optoelectronic sensors for non-contact distance and displacement measurement for industrial applications. Both sensors operate according to the phase comparison principle, whereby higher precision can be achieved. They can be easily aligned and positioned with a visible laser beam. The optoNCDT ILR 1182 series operates with a 50 Hz measuring rate and is therefore suitable for fast processes. The mounting grooves on the housing offer flexible mounting options for many situations.

ILR1181
Measuring range target black with 6% reflection = 0.4 ... 17 m
target gray with 10% reflection = 0.1 ... 30 m
target white with 90% reflection = 0.1 ... 50 m
target with reflector film (foil) = 50 ... 150 m
Measuring uncertainty ±2 mm (-15 °C ... +30 °C)
±5 mm (-40 °C ... +50 °C)
Resolution 0.1 mm, freely scalable
Reproducibility 0.5 mm
Measuring time ILR1181-30 = 100 ms ... 6 s
ILR1182-30 = 20 ms ... 6 s
ILR1183-30 = 20 ms ... 6 s
Laser class semiconductor laser (red 650 nm)
Operating temperature -10 … + 50 °C (optional -40 … +50 °C, with integral heating)
Storage temperature -40 °C ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Power consumption Ca. 1.5 W
Serial interface ILR1181-30 = RS232 or optional RS422
ILR1182-30 = RS232 or optional RS422
ILR1183-30 = SSI interface (RS422)
Profibus interface ILR1183-30 = Profibus (RS485)
Switching output Programmable switching, maximum load 0.5 A
Analog output Programmable distance range limits,
4 mA to 20 mA, adjustable by ILR1181-30 and ILR1182-30
Housing material Aluminum anodized
Size 194 mm x 99 mm x 51 mm
Weight 980 g
Protection class IP 65

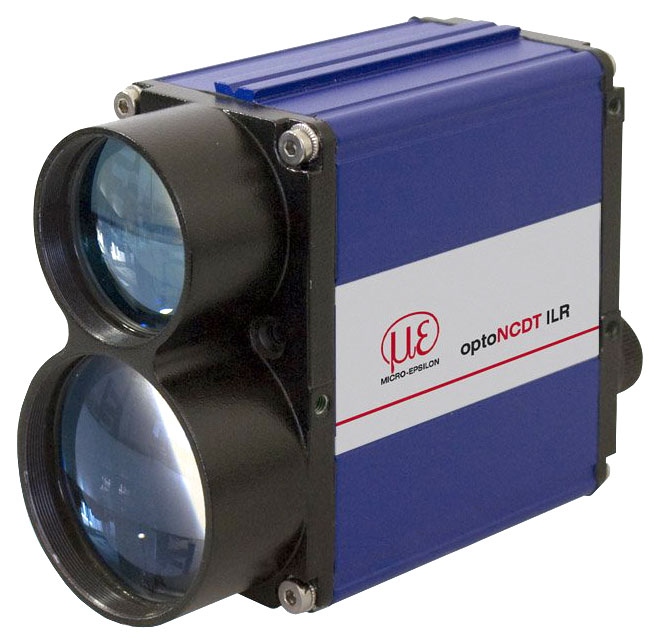

Laser distance measuring deviceoptoNCDT ILR1191-300

Laser distance measuring device
optoNCDT ILR1191-300

Request quote
Made in Germany

RS232, RS422

лого ProfiBus
лого SSI

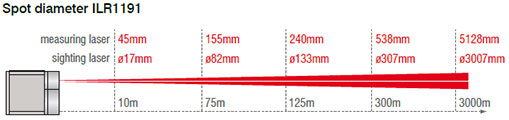

optoNCDT ILR 1191-300 sensors are optoelectronic sensors for non-contact distance and speed measurement for industrial use. The sensor is designed for very large measuring ranges, with and without reflector. Due to the very high measuring rate of the sensor, moving objects can be measured easily. The sensor operates according to the laser pulse timeof-flight principle and is therefore particularly well suited to applications with large distances. Commissioning of the sensor is straightforward due to a variety of interfaces and easy installation options. For outdoor use, the optoNCDT ILR 1191 is equipped with integral heating and protected to IP67.

ILR1191
Measuring range target black with 6% reflection = 1 ... 150 m
target gray with 10% reflection = 0.5 ... 200 m
target white with 90% reflection = 0.5 ... 300 m
target with reflector film (foil) = 300 ... 3000 m
Measuring uncertainty ±20 mm (at measurement output 100 Hz)
±60 mm (at measurement output 2 kHz)
Resolution 1 mm, freely scalable
Reproducibility 20 mm
Measuring time 0 ms to 100 ms
Laser class measuring laser (laser class 1)
sighting laser (laser class 2)
Operating temperature -40 … +60 °C
Storage temperature -40 ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Serial interface RS232 and RS422, SSI interface (RS422)
Profibus interface Profibus (RS485)
Switching output Programmable switching, maximum load 0.5 A
Analog output Programmable distance range limits,
4 mA to 20 mA, adjustable
Housing material Aluminum anodized
Size 140 mm x 100 mm x 57 mm
Weight 800 g
Protection class IP 65
