Silocont SIC-350

Silocont SIC-350

Made in Germany

Description

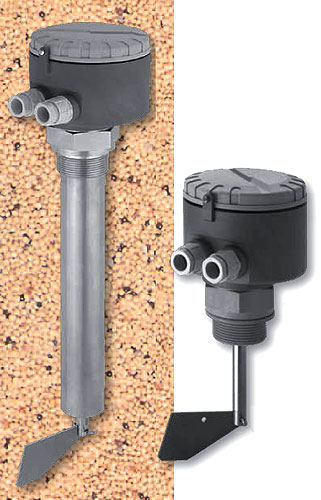

The economical Silocont SIC-350 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized polymers make the unit outstandingly robust and therefore suitable for use in dust explosive areas according the latest standards.

Process connections: NPT 1½”, PBT; NPT 1¼”, PBT; G 1½”, PBT; NPT 1½”, 1.4305; NPT 1¼”, 1.4305; G 1½”, 1.4305
Sensor length: Different standard lenghts between 100mm (4″) and 600mm (24″), additional rope length of 2000 mm (80″)
Medium Temperature: -20 to +80°C (-4 to +170°F)
Pressure: 0.5 to 1.8 bar (7 to 25 psi)
ATEX II 1/3 D, CSA DIP/ II, III/1/E-G, FM DIP/ II, III/1/E-G

Measuring Principle Paddle
Characteristic / Application Universally applicable as a full, empty and demand alarm on silos containing solids
Supply / Communication 230 VAC, 115 VAC, 24 VAC, 20...28 VDC
Ambient temperature -20°C … +60°C
Process temperature -20°C … +80°C
Process pressure absolute 0,5 bar bis 2,5 bar
max. overpressure limit ≤ 1,5 bar
Min. density of medium ≥ 80 g/l
Main wetted parts 1.4305
Max. tensile strength Rope version > 1500 N
Process connection NPT 1½”, PBT
NPT 1¼”, PBT
G 1½”, PBT
NPT 1½”, 1.4305
NPT 1¼”, 1.4305
G 1½”, 1.4305
Sensor length 75, 100, 120, 200, 300 mm, Rope length 2000 mm, can be shortened
Output Micro switch with changeover contact max. 6A / 250 VAC 100 mA
Certificates / Approvals ATEX II 1/3 D, CSA DIP/ II, CSA DIP/ III/1/E-G, FM DIP/ II, FM DIP/III/1/E-G
Options Rotation Monitoring System, Signal Lamp, Fold-away paddle, Weather protection cover
Specialities Rotation Monitoring System, Fold-away paddle

Examples of supplied versions: expand / close

Silocont SIC-350 AA11AA11MNCA Silocont SIC-350 BI11AA11MNCA
Silocont SIC-350 CC11AA11MNCA Silocont SIC-350 FC11AA11MNCA
Silocont SIC-350 AA12AA11MNCA Silocont SIC-350 BI12AA11MNCA
Silocont SIC-350 CC12AA11MNCA Silocont SIC-350 FC12AA11MNCA
Silocont SIC-350 AA13AA11MNCA Silocont SIC-350 BI13AA11MNCA
Silocont SIC-350 CC13AA11MNCA Silocont SIC-350 FC13AA11MNCA
Silocont SIC-350 AA14AA11MNCA Silocont SIC-350 BI14AA11MNCA
Silocont SIC-350 CC14AA11MNCA Silocont SIC-350 FC14AA11MNCA
Silocont SIC-350 AA15AA11MNCA Silocont SIC-350 BI15AA11MNCA
Silocont SIC-350 CC15AA11MNCA Silocont SIC-350 FC15AA11MNCA
Silocont SIC-350 AA16AA11MNCA Silocont SIC-350 BI16AA11MNCA
Silocont SIC-350 CC16AA11MNCA Silocont SIC-350 FC16AA11MNCA
Silocont SIC-350 AA11AB11MNCA Silocont SIC-350 BI11AB11MNCA
Silocont SIC-350 CC11AB11MNCA Silocont SIC-350 FC11AB11MNCA
Silocont SIC-350 AA12AB11MNCA Silocont SIC-350 BI12AB11MNCA
Silocont SIC-350 CC12AB11MNCA Silocont SIC-350 FC12AB11MNCA
Silocont SIC-350 AA13AB11MNCA Silocont SIC-350 BI13AB11MNCA
Silocont SIC-350 CC13AB11MNCA Silocont SIC-350 FC13AB11MNCA
Silocont SIC-350 AA14AB11MNCA Silocont SIC-350 BI14AB11MNCA
Silocont SIC-350 CC14AB11MNCA Silocont SIC-350 FC14AB11MNCA
Silocont SIC-350 AA15AB11MNCA Silocont SIC-350 BI15AB11MNCA
Silocont SIC-350 CC15AB11MNCA Silocont SIC-350 FC15AB11MNCA
Silocont SIC-350 AA16AB11MNCA Silocont SIC-350 BI16AB11MNCA
Silocont SIC-350 CC16AB11MNCA Silocont SIC-350 FC16AB11MNCA
Silocont SIC-350 AA11AC11MNCA Silocont SIC-350 BI11AC11MNCA
Silocont SIC-350 CC11AC11MNCA Silocont SIC-350 FC11AC11MNCA
Silocont SIC-350 AA12AC11MNCA Silocont SIC-350 BI12AC11MNCA
Silocont SIC-350 CC12AC11MNCA Silocont SIC-350 FC12AC11MNCA
Silocont SIC-350 AA13AC11MNCA Silocont SIC-350 BI13AC11MNCA
Silocont SIC-350 CC13AC11MNCA Silocont SIC-350 FC13AC11MNCA
Silocont SIC-350 AA14AC11MNCA Silocont SIC-350 BI14AC11MNCA
Silocont SIC-350 CC14AC11MNCA Silocont SIC-350 FC14AC11MNCA
Silocont SIC-350 AA15AC11MNCA Silocont SIC-350 BI15AC11MNCA
Silocont SIC-350 CC15AC11MNCA Silocont SIC-350 FC15AC11MNCA
Silocont SIC-350 AA16AC11MNCA Silocont SIC-350 BI16AC11MNCA
Silocont SIC-350 CC16AC11MNCA Silocont SIC-350 FC16AC11MNCA
Silocont SIC-350 AA11AD11MNCA Silocont SIC-350 BI11AD11MNCA
Silocont SIC-350 CC11AD11MNCA Silocont SIC-350 FC11AD11MNCA
Silocont SIC-350 AA12AD11MNCA Silocont SIC-350 BI12AD11MNCA
Silocont SIC-350 CC12AD11MNCA Silocont SIC-350 FC12AD11MNCA
Silocont SIC-350 AA13AD11MNCA Silocont SIC-350 BI13AD11MNCA
Silocont SIC-350 CC13AD11MNCA Silocont SIC-350 FC13AD11MNCA
Silocont SIC-350 AA14AD11MNCA Silocont SIC-350 BI14AD11MNCA
Silocont SIC-350 CC14AD11MNCA Silocont SIC-350 FC14AD11MNCA
Silocont SIC-350 AA15AD11MNCA Silocont SIC-350 BI15AD11MNCA
Silocont SIC-350 CC15AD11MNCA Silocont SIC-350 FC15AD11MNCA
Silocont SIC-350 AA16AD11MNCA Silocont SIC-350 BI16AD11MNCA
Silocont SIC-350 CC16AD11MNCA Silocont SIC-350 FC16AD11MNCA
Silocont SIC-350 AA11AE11MNCA Silocont SIC-350 BI11AE11MNCA
Silocont SIC-350 CC11AE11MNCA Silocont SIC-350 FC11AE11MNCA
Silocont SIC-350 AA12AE11MNCA Silocont SIC-350 BI12AE11MNCA
Silocont SIC-350 CC12AE11MNCA Silocont SIC-350 FC12AE11MNCA
Silocont SIC-350 AA13AE11MNCA Silocont SIC-350 BI13AE11MNCA
Silocont SIC-350 CC13AE11MNCA Silocont SIC-350 FC13AE11MNCA
Silocont SIC-350 AA14AE11MNCA Silocont SIC-350 BI14AE11MNCA
Silocont SIC-350 CC14AE11MNCA Silocont SIC-350 FC14AE11MNCA
Silocont SIC-350 AA15AE11MNCA Silocont SIC-350 BI15AE11MNCA
Silocont SIC-350 CC15AE11MNCA Silocont SIC-350 FC15AE11MNCA
Silocont SIC-350 AA16AE11MNCA Silocont SIC-350 BI16AE11MNCA
Silocont SIC-350 CC16AE11MNCA Silocont SIC-350 FC16AE11MNCA
Silocont SIC-350 AA11AF11MNCA Silocont SIC-350 BI11AF11MNCA
Silocont SIC-350 CC11AF11MNCA Silocont SIC-350 FC11AF11MNCA
Silocont SIC-350 AA12AF11MNCA Silocont SIC-350 BI12AF11MNCA
Silocont SIC-350 CC12AF11MNCA Silocont SIC-350 FC12AF11MNCA
Silocont SIC-350 AA13AF11MNCA Silocont SIC-350 BI13AF11MNCA
Silocont SIC-350 CC13AF11MNCA Silocont SIC-350 FC13AF11MNCA
Silocont SIC-350 AA14AF11MNCA Silocont SIC-350 BI14AF11MNCA
Silocont SIC-350 CC14AF11MNCA Silocont SIC-350 FC14AF11MNCA
Silocont SIC-350 AA15AF11MNCA Silocont SIC-350 BI15AF11MNCA
Silocont SIC-350 CC15AF11MNCA Silocont SIC-350 FC15AF11MNCA
Silocont SIC-350 AA16AF11MNCA Silocont SIC-350 BI16AF11MNCA
Silocont SIC-350 CC16AF11MNCA Silocont SIC-350 FC16AF11MNCA
