Pressure sensors

ACS-CONTROL-SYSTEM

Fill level measurement technology from ACS-CONTROL-SYSTEM offers sensors for continuous measurement and point level detection in liquids and bulk solids. Due to the comprehensive selection of measuring principles and device types, we can offer a solution for every task. Fill levels or level measurement can be done with displacement sensors. For precise level control measurement, confocal sensors or laser triangulation sensors are typically used. For long ranges, such as silo fill level, laser rangefinders are used to measure material levels at a longer distance.

Our quote will always be lower than the manufacturer's price. Please send us the full part number of a device to get a quick response.

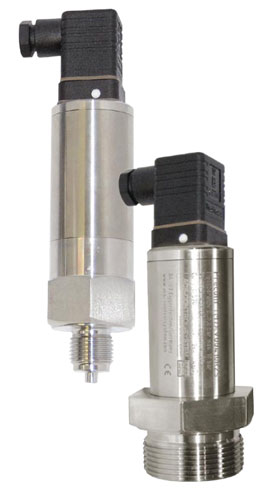

Digital pressure sensor Precont S10 Precont ExS10

Digital pressure sensor
Precont S10
Precont ExS10

Description

The Precont S10 is used in all fields of proceeding and process technique.

The excellent characteristics like pressure strength, high chemical resistance, corrosion protection and insensitivity against temperature shocks allows the use in the hardest applications for the measurement of gases, steams and liquids.

Examples of supplied versions: expand / close

Precont S100AVA1010R1S Precont ExS100AVA1010R1S
Precont XDS100AVA1010R1S Precont S101AVA1010R1S
Precont ExS101AVA1010R1S Precont XDS101AVA1010R1S
Precont S104AVA1010R1S Precont ExS104AVA1010R1S
Precont XDS104AVA1010R1S Precont S106AVA1010R1S
Precont ExS106AVA1010R1S Precont XDS106AVA1010R1S
Precont S100BVA1010R1S Precont ExS100BVA1010R1S
Precont XDS100BVA1010R1S Precont S101BVA1010R1S
Precont ExS101BVA1010R1S Precont XDS101BVA1010R1S
Precont S104BVA1010R1S Precont ExS104BVA1010R1S
Precont XDS104BVA1010R1S Precont S106BVA1010R1S
Precont ExS106BVA1010R1S Precont XDS106BVA1010R1S
Precont S100DVA1010R1S Precont ExS100DVA1010R1S
Precont XDS100DVA1010R1S Precont S101DVA1010R1S
Precont ExS101DVA1010R1S Precont XDS101DVA1010R1S
Precont S104DVA1010R1S Precont ExS104DVA1010R1S
Precont XDS104DVA1010R1S Precont S106DVA1010R1S
Precont ExS106DVA1010R1S Precont XDS106DVA1010R1S
Precont S100EVA1010R1S Precont ExS100EVA1010R1S
Precont XDS100EVA1010R1S Precont S101EVA1010R1S
Precont ExS101EVA1010R1S Precont XDS101EVA1010R1S
Precont S104EVA1010R1S Precont ExS104EVA1010R1S
Precont XDS104EVA1010R1S Precont S106EVA1010R1S
Precont ExS106EVA1010R1S Precont XDS106EVA1010R1S
Precont S100FVA1010R1S Precont ExS100FVA1010R1S
Precont XDS100FVA1010R1S Precont S101FVA1010R1S
Precont ExS101FVA1010R1S Precont XDS101FVA1010R1S
Precont S104FVA1010R1S Precont ExS104FVA1010R1S
Precont XDS104FVA1010R1S Precont S106FVA1010R1S
Precont ExS106FVA1010R1S Precont XDS106FVA1010R1S
Precont S100HVA1010R1S Precont ExS100HVA1010R1S
Precont XDS100HVA1010R1S Precont S101HVA1010R1S
Precont ExS101HVA1010R1S Precont XDS101HVA1010R1S
Precont S104HVA1010R1S Precont ExS104HVA1010R1S
Precont XDS104HVA1010R1S Precont S106HVA1010R1S
Precont ExS106HVA1010R1S Precont XDS106HVA1010R1S

Digital pressure sensor Precont S20 Precont ExS20

Digital pressure sensor
Precont S20
Precont ExS20

Description

The Precont S20 is used in all fields of proceeding and process technique. The excellent characteristics like pressure strength, high chemical resistance, corrosion protection and insensitivity against temperature shocks allows the use in the hardest applications for the measurement of gases, steams and liquids.

The polysilicone resp. thin-film measurement sensor guarantees highest pressure ranges, good reproduceability and hysteresis, an up to 4 times overload resistance and a good long term stability.

Examples of supplied versions: expand / close

Precont S206AV110A0R4S Precont ExS206AV110A0R4S
Precont XDS206AV110A0R4S Precont S200AV110A0R4S
Precont ExS200AV110A0R4S Precont XDS200AV110A0R4S
Precont S202AV110A0R4S Precont ExS202AV110A0R4S
Precont XDS202AV110A0R4S Precont S205AV110A0R4S
Precont ExS205AV110A0R4S Precont XDS205AV110A0R4S
Precont S206BV110A0R4S Precont ExS206BV110A0R4S
Precont XDS206BV110A0R4S Precont S200BV110A0R4S
Precont ExS200BV110A0R4S Precont XDS200BV110A0R4S
Precont S202BV110A0R4S Precont ExS202BV110A0R4S
Precont XDS202BV110A0R4S Precont S205BV110A0R4S
Precont ExS205BV110A0R4S Precont XDS205BV110A0R4S
Precont S206DV110A0R4S Precont ExS206DV110A0R4S
Precont XDS206DV110A0R4S Precont S200DV110A0R4S
Precont ExS200DV110A0R4S Precont XDS200DV110A0R4S
Precont S202DV110A0R4S Precont ExS202DV110A0R4S
Precont XDS202DV110A0R4S Precont S205DV110A0R4S
Precont ExS205DV110A0R4S Precont XDS205DV110A0R4S
Precont S206EV110A0R4S Precont ExS206EV110A0R4S
Precont XDS206EV110A0R4S Precont S200EV110A0R4S
Precont ExS200EV110A0R4S Precont XDS200EV110A0R4S
Precont S202EV110A0R4S Precont ExS202EV110A0R4S
Precont XDS202EV110A0R4S Precont S205EV110A0R4S
Precont ExS205EV110A0R4S Precont XDS205EV110A0R4S
Precont S206FV110A0R4S Precont ExS206FV110A0R4S
Precont XDS206FV110A0R4S Precont S200FV110A0R4S
Precont ExS200FV110A0R4S Precont XDS200FV110A0R4S
Precont S202FV110A0R4S Precont ExS202FV110A0R4S
Precont XDS202FV110A0R4S Precont S205FV110A0R4S
Precont ExS205FV110A0R4S Precont XDS205FV110A0R4S
Precont S206HV110A0R4S Precont ExS206HV110A0R4S
Precont XDS206HV110A0R4S Precont S200HV110A0R4S
Precont ExS200HV110A0R4S Precont XDS200HV110A0R4S
Precont S202HV110A0R4S Precont ExS202HV110A0R4S
Precont XDS202HV110A0R4S Precont S205HV110A0R4S
Precont ExS205HV110A0R4S Precont XDS205HV110A0R4S

Digital pressure sensor Precont S30 Precont ExS30

Digital pressure sensor
Precont S30
Precont ExS30

Description

The devices of the series Precont S30 with EHEDG conform process connection for hygienic applications are used for supervision, control and also for continuous measurement of pressures from -1 up to +25 bar in gases, steams, liquids and dusts within closed containers or pipelines at process temperatures from -40°C to +150°C.

The pressure sensor Precont S30 is expecially designed for the requirements in the food and semi-luxory item industy, as well as the pharmaceutical industry and biotechnology. This is especially relavant for the extreme conditions like chemical resistance against cleaning agents as well as insensitiveness against increases temperatures in the case of CIP/SIP cleaning processes.

Due to the availability of adapters for the common process connections like varivent or connections acc. to DIN11851 with cone flange with nut groove for pipes acc. to DIN 11850, as well as a suitable weld-in sleeve the pressure transmitter can be installed in nearly hygienic application.

The use of a strain gauge with metallic membrane guarantees excellent characteristics like high pressuren and pressure blow strength, high resistance against chemicals and corrosion, very good insensitiveness against temperature shocks and EM interferences, high accuracy and long term stability as well as low temperature sensitiveness.

Examples of supplied versions: expand / close

Precont S305AV110A0R4S Precont ExS305AV110A0R4S
Precont XDS305AV110A0R4S Precont S30NAV110A0R4S
Precont ExS30NAV110A0R4S Precont XDS30NAV110A0R4S
Precont S30MAV110A0R4S Precont ExS30MAV110A0R4S
Precont XDS30MAV110A0R4S Precont S305AV110A0R4S
Precont ExS305AV110A0R4S Precont XDS305AV110A0R4S
Precont S305BV110A0R4S Precont ExS305BV110A0R4S
Precont XDS305BV110A0R4S Precont S30NBV110A0R4S
Precont ExS30NBV110A0R4S Precont XDS30NBV110A0R4S
Precont S30MBV110A0R4S Precont ExS30MBV110A0R4S
Precont XDS30MBV110A0R4S Precont S305BV110A0R4S
Precont ExS305BV110A0R4S Precont XDS305BV110A0R4S
Precont S305DV110A0R4S Precont ExS305DV110A0R4S
Precont XDS305DV110A0R4S Precont S30NDV110A0R4S
Precont ExS30NDV110A0R4S Precont XDS30NDV110A0R4S
Precont S30MDV110A0R4S Precont ExS30MDV110A0R4S
Precont XDS30MDV110A0R4S Precont S305DV110A0R4S
Precont ExS305DV110A0R4S Precont XDS305DV110A0R4S
Precont S305EV110A0R4S Precont ExS305EV110A0R4S
Precont XDS305EV110A0R4S Precont S30NEV110A0R4S
Precont ExS30NEV110A0R4S Precont XDS30NEV110A0R4S
Precont S30MEV110A0R4S Precont ExS30MEV110A0R4S
Precont XDS30MEV110A0R4S Precont S305EV110A0R4S
Precont ExS305EV110A0R4S Precont XDS305EV110A0R4S
Precont S305FV110A0R4S Precont ExS305FV110A0R4S
Precont XDS305FV110A0R4S Precont S30NFV110A0R4S
Precont ExS30NFV110A0R4S Precont XDS30NFV110A0R4S
Precont S30MFV110A0R4S Precont ExS30MFV110A0R4S
Precont XDS30MFV110A0R4S Precont S305FV110A0R4S
Precont ExS305FV110A0R4S Precont XDS305FV110A0R4S
Precont S305HV110A0R4S Precont ExS305HV110A0R4S
Precont XDS305HV110A0R4S Precont S30NHV110A0R4S
Precont ExS30NHV110A0R4S Precont XDS30NHV110A0R4S
Precont S30MHV110A0R4S Precont ExS30MHV110A0R4S
Precont XDS30MHV110A0R4S Precont S305HV110A0R4S
Precont ExS305HV110A0R4S Precont XDS305HV110A0R4S

Digital pressure sensor Precont S40 Precont ExS40

Digital pressure sensor
Precont S40
Precont ExS40

Description

The Precont S40 is used in all fields of proceeding and process technique. The excellent characteristics like pressure strength, high chemical resistance, corrosion protection and insensitivity against temperature shocks allows the use in the hardest applications for the measurement of gases, steams and liquids.

Examples of supplied versions: expand / close

Precont S406AV110A0R4S Precont ExS406AV110A0R4S
Precont XDS406AV110A0R4S Precont S400AV110A0R4S
Precont ExS400AV110A0R4S Precont XDS400AV110A0R4S
Precont S402AV110A0R4S Precont ExS402AV110A0R4S
Precont XDS402AV110A0R4S Precont S405AV110A0R4S
Precont ExS405AV110A0R4S Precont XDS405AV110A0R4S
Precont S406BV110A0R4S Precont ExS406BV110A0R4S
Precont XDS406BV110A0R4S Precont S400BV110A0R4S
Precont ExS400BV110A0R4S Precont XDS400BV110A0R4S
Precont S402BV110A0R4S Precont ExS402BV110A0R4S
Precont XDS402BV110A0R4S Precont S405BV110A0R4S
Precont ExS405BV110A0R4S Precont XDS405BV110A0R4S
Precont S406DV110A0R4S Precont ExS406DV110A0R4S
Precont XDS406DV110A0R4S Precont S400DV110A0R4S
Precont ExS400DV110A0R4S Precont XDS400DV110A0R4S
Precont S402DV110A0R4S Precont ExS402DV110A0R4S
Precont XDS402DV110A0R4S Precont S405DV110A0R4S
Precont ExS405DV110A0R4S Precont XDS405DV110A0R4S
Precont S406EV110A0R4S Precont ExS406EV110A0R4S
Precont XDS406EV110A0R4S Precont S400EV110A0R4S
Precont ExS400EV110A0R4S Precont XDS400EV110A0R4S
Precont S402EV110A0R4S Precont ExS402EV110A0R4S
Precont XDS402EV110A0R4S Precont S405EV110A0R4S
Precont ExS405EV110A0R4S Precont XDS405EV110A0R4S
Precont S406FV110A0R4S Precont ExS406FV110A0R4S
Precont XDS406FV110A0R4S Precont S400FV110A0R4S
Precont ExS400FV110A0R4S Precont XDS400FV110A0R4S
Precont S402FV110A0R4S Precont ExS402FV110A0R4S
Precont XDS402FV110A0R4S Precont S405FV110A0R4S
Precont ExS405FV110A0R4S Precont XDS405FV110A0R4S
Precont S406HV110A0R4S Precont ExS406HV110A0R4S
Precont XDS406HV110A0R4S Precont S400HV110A0R4S
Precont ExS400HV110A0R4S Precont XDS400HV110A0R4S
Precont S402HV110A0R4S Precont ExS402HV110A0R4S
Precont XDS402HV110A0R4S Precont S405HV110A0R4S
Precont ExS405HV110A0R4S Precont XDS405HV110A0R4S

Precont S70 Precont ExS70

Precont S70
Precont ExS70

Description

The Precont S70 is used in all fields of proceeding and process technique. The excellent characteristics like pressure strength, high chemical resistance, corrosion protection and insensitivity against temperature shocks allows the use in the hardest applications for the measurement of gases, steams and liquids. The process pressure is applied to the metallic membrane of the diaphragm seal and is transferred by vegetabe oil to the behind placed ceramic or metallic membrane of the respective measurement sensor. By this an essential extension of the permitted process temperature range up to -40…+370°C is achieved.

Examples of supplied versions: expand / close

Precont S70G1AAVA10R2S Precont ExS70G1AAVA10R2S
Precont XDS70G1AAVA10R2S Precont S70G2AAVA10R2S
Precont ExS70G2AAVA10R2S Precont XDS70G2AAVA10R2S
Precont S70G3AAVA10R2S Precont ExS70G3AAVA10R2S
Precont XDS70G3AAVA10R2S Precont S70F1AAVA10R2S
Precont ExS70F1AAVA10R2S Precont XDS70F1AAVA10R2S
Precont S70F2AAVA10R2S Precont ExS70F2AAVA10R2S
Precont XDS70F2AAVA10R2S Precont S70M2AAVA10R2S
Precont ExS70M2AAVA10R2S Precont XDS70M2AAVA10R2S
Precont S70M4AAVA10R2S Precont ExS70M4AAVA10R2S
Precont XDS70M4AAVA10R2S Precont S70V1AAVA10R2S
Precont ExS70V1AAVA10R2S Precont XDS70V1AAVA10R2S
Precont S70D1AAVA10R2S Precont ExS70D1AAVA10R2S
Precont XDS70D1AAVA10R2S Precont S70T2AAVA10R2S
Precont ExS70T2AAVA10R2S Precont XDS70T2AAVA10R2S
Precont S70R1AAVA10R2S Precont ExS70R1AAVA10R2S
Precont XDS70R1AAVA10R2S Precont S70R3AAVA10R2S
Precont ExS70R3AAVA10R2S Precont XDS70R3AAVA10R2S
Precont S70G1BAVA10R2S Precont ExS70G1BAVA10R2S
Precont XDS70G1BAVA10R2S Precont S70G2BAVA10R2S
Precont ExS70G2BAVA10R2S Precont XDS70G2BAVA10R2S
Precont S70G3BAVA10R2S Precont ExS70G3BAVA10R2S
Precont XDS70G3BAVA10R2S Precont S70F1BAVA10R2S
Precont ExS70F1BAVA10R2S Precont XDS70F1BAVA10R2S
Precont S70F2BAVA10R2S Precont ExS70F2BAVA10R2S
Precont XDS70F2BAVA10R2S Precont S70M2BAVA10R2S
Precont ExS70M2BAVA10R2S Precont XDS70M2BAVA10R2S
Precont S70M4BAVA10R2S Precont ExS70M4BAVA10R2S
Precont XDS70M4BAVA10R2S Precont S70V1BAVA10R2S
Precont ExS70V1BAVA10R2S Precont XDS70V1BAVA10R2S
Precont S70D1BAVA10R2S Precont ExS70D1BAVA10R2S
Precont XDS70D1BAVA10R2S Precont S70T2BAVA10R2S
Precont ExS70T2BAVA10R2S Precont XDS70T2BAVA10R2S
Precont S70R1BAVA10R2S Precont ExS70R1BAVA10R2S
Precont XDS70R1BAVA10R2S Precont S70R3BAVA10R2S
Precont ExS70R3BAVA10R2S Precont XDS70R3BAVA10R2S

Precont PN4SC

Precont PN4SC

Description

Precont PN4SC - pressure transmitter / Pressure switch with data memory for general applications Monitoring of absolute or relative pressure in gases, vapors, liquids and dust. With ceramic front-flush or internal diaphragm With TFT-display, 4-20mA or 0-10V output and up to 4 pnp switching outputs.

Examples of supplied versions: expand / close

Precont PN4SCS11VC10M00R1S Precont PN4SCS21VC10M00R1S
Precont PN4SCS31VC10M00R1S Precont PN4SCS41VC10M00R1S
Precont PN4SCS51VC10M00R1S Precont PN4SCS61VC10M00R1S
Precont PN4SCS71VC10M00R1S Precont PN4SCS81VC10M00R1S
Precont PN4SCS91VC10M00R1S Precont PN4SCSE1VC10M00R1S
Precont PN4SCSC1VC10M00R1S Precont PN4SCSA1VC10M00R1S
Precont PN4SCSR1VC10M00R1S Precont PN4SCSN1VC10M00R1S
Precont PN4SCSM1VC10M00R1S Precont PN4SCSP1VC10M00R1S
Precont PN4SCS13VC10M00R1S Precont PN4SCS23VC10M00R1S
Precont PN4SCS33VC10M00R1S Precont PN4SCS43VC10M00R1S
Precont PN4SCS53VC10M00R1S Precont PN4SCS63VC10M00R1S
Precont PN4SCS73VC10M00R1S Precont PN4SCS83VC10M00R1S
Precont PN4SCS93VC10M00R1S Precont PN4SCSE3VC10M00R1S
Precont PN4SCSC3VC10M00R1S Precont PN4SCSA3VC10M00R1S
Precont PN4SCSR3VC10M00R1S Precont PN4SCSN3VC10M00R1S
Precont PN4SCSM3VC10M00R1S Precont PN4SCSP3VC10M00R1S
Precont PN4SCS14VC10M00R1S Precont PN4SCS24VC10M00R1S
Precont PN4SCS34VC10M00R1S Precont PN4SCS44VC10M00R1S
Precont PN4SCS54VC10M00R1S Precont PN4SCS64VC10M00R1S
Precont PN4SCS74VC10M00R1S Precont PN4SCS84VC10M00R1S
Precont PN4SCS94VC10M00R1S Precont PN4SCSE4VC10M00R1S
Precont PN4SCSC4VC10M00R1S Precont PN4SCSA4VC10M00R1S
Precont PN4SCSR4VC10M00R1S Precont PN4SCSN4VC10M00R1S
Precont PN4SCSM4VC10M00R1S Precont PN4SCSP4VC10M00R1S
Precont PN4SCS16VC10M00R1S Precont PN4SCS26VC10M00R1S
Precont PN4SCS36VC10M00R1S Precont PN4SCS46VC10M00R1S
Precont PN4SCS56VC10M00R1S Precont PN4SCS66VC10M00R1S
Precont PN4SCS76VC10M00R1S Precont PN4SCS86VC10M00R1S
Precont PN4SCS96VC10M00R1S Precont PN4SCSE6VC10M00R1S
Precont PN4SCSC6VC10M00R1S Precont PN4SCSA6VC10M00R1S
Precont PN4SCSR6VC10M00R1S Precont PN4SCSN6VC10M00R1S
Precont PN4SCSM6VC10M00R1S Precont PN4SCSP6VC10M00R1S
Precont PN4SCS11VC10K00R1S Precont PN4SCS21VC10K00R1S
Precont PN4SCS31VC10K00R1S Precont PN4SCS41VC10K00R1S
Precont PN4SCS51VC10K00R1S Precont PN4SCS61VC10K00R1S
Precont PN4SCS71VC10K00R1S Precont PN4SCS81VC10K00R1S
Precont PN4SCS91VC10K00R1S Precont PN4SCSE1VC10K00R1S
Precont PN4SCSC1VC10K00R1S Precont PN4SCSA1VC10K00R1S
Precont PN4SCSR1VC10K00R1S Precont PN4SCSN1VC10K00R1S
Precont PN4SCSM1VC10K00R1S Precont PN4SCSP1VC10K00R1S
Precont PN4SCS13VC10K00R1S Precont PN4SCS23VC10K00R1S
Precont PN4SCS33VC10K00R1S Precont PN4SCS43VC10K00R1S
Precont PN4SCS53VC10K00R1S Precont PN4SCS63VC10K00R1S
Precont PN4SCS73VC10K00R1S Precont PN4SCS83VC10K00R1S
Precont PN4SCS93VC10K00R1S Precont PN4SCSE3VC10K00R1S
Precont PN4SCSC3VC10K00R1S Precont PN4SCSA3VC10K00R1S
Precont PN4SCSR3VC10K00R1S Precont PN4SCSN3VC10K00R1S
Precont PN4SCSM3VC10K00R1S Precont PN4SCSP3VC10K00R1S
Precont PN4SCS14VC10K00R1S Precont PN4SCS24VC10K00R1S
Precont PN4SCS34VC10K00R1S Precont PN4SCS44VC10K00R1S
Precont PN4SCS54VC10K00R1S Precont PN4SCS64VC10K00R1S
Precont PN4SCS74VC10K00R1S Precont PN4SCS84VC10K00R1S
Precont PN4SCS94VC10K00R1S Precont PN4SCSE4VC10K00R1S
Precont PN4SCSC4VC10K00R1S Precont PN4SCSA4VC10K00R1S
Precont PN4SCSR4VC10K00R1S Precont PN4SCSN4VC10K00R1S
Precont PN4SCSM4VC10K00R1S Precont PN4SCSP4VC10K00R1S
Precont PN4SCS16VC10K00R1S Precont PN4SCS26VC10K00R1S
Precont PN4SCS36VC10K00R1S Precont PN4SCS46VC10K00R1S
Precont PN4SCS56VC10K00R1S Precont PN4SCS66VC10K00R1S
Precont PN4SCS76VC10K00R1S Precont PN4SCS86VC10K00R1S
Precont PN4SCS96VC10K00R1S Precont PN4SCSE6VC10K00R1S
Precont PN4SCSC6VC10K00R1S Precont PN4SCSA6VC10K00R1S
Precont PN4SCSR6VC10K00R1S Precont PN4SCSN6VC10K00R1S
Precont PN4SCSM6VC10K00R1S Precont PN4SCSP6VC10K00R1S

Precont PN4SM

Precont PN4SM

Description

The device Precont PN4SM is an electronic pressure transmitter / pressure switch for monitoring, control as well as continuous measurement of pressures in gases, vapors, liquids and dusts. Due to the device construction with measuring ranges from -1 bar to 1000 bar (gauge), measuring ranges from 0 bar to 1000 bar (absolute), measuring spans from 400 mbar to 1000 bar, process temperatures from –40°C to +125°C, process material CrNi-steel as well as the availability of industrial standard process connections like thread ISO 228-1 (EN 837 manometer, front-flush) the device is especially suitable for the use for machinery and plant engineering, air-conditioning and refrigeration plant engineering, hydraulic and pneumatic systems, process industry, environmental technology, facility and building automation.

The device Precont PN4SM is suitable for demanding measuring requirements. Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications. The front-flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallizing, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections.

The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether low temperatures when used outdoors, high shock and vibration or aggressive media. A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device.

Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.A LABS-free resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like factory certifications for drink water resp. food suitability.


Precont PN4LM

Precont PN4LM

Description

Examples of supplied versions: expand / close


Precont PS4SK

Precont PS4SK

Description

Due to the device construction with measuring ranges from -1 bar to 600 bar, gauge, measuring ranges from 1 bar to 40 bar, absolute, measuring spans from 250 mbar to 600 bar, process temperatures from –40°C to +135°C and process materials Al2O3-ceramic / CrNi-steel as well as the availability of industrial standard process connections like thread connection ISO 228-1, EN 837 manometer, thread connection ISO 228-1 (inner thread), thread connection ISO 228-1 (EN 1179-2 E), thread connection ISO 228-1 (inner bore) and thread connection ISO 228-1 (front-flush) the device Precont® PS4SK is especially suitable for the use for machinery and plant engineering, air-conditioning and refrigeration plant engineering, hydraulic and pneumatic systems, process industry, environmental technology and facility and building automation.

The device is suitable for demanding measuring requirements. Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration or aggressive media. A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.

A LABS-free resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or factory certifications for drink water resp. food suitability.


Precont PS4SC

Precont PS4SC

Description

Due to the device construction as well as the availability of a variety of hygienic resp. standard process connections the device Precont PS4SC is especially suitable for the use for hygienic and aseptic applications in food and beverage industry, pharmaceutical industry, biotechnology and sterile process engineering as well as general applications in machinery and plant engineering, air-conditioning and refrigeration plant engineering, hydraulic and pneumatic systems, process industry and environmental technology.

The pressure switch is suitable for demanding measuring requirements. Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications. The pressure switch with front-flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallizing, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections.

The front-flush diaphragm is completely welded with the process connection and supplied with a positive seal. A reliable, dead-space free sealing between the process connection and the process adapter resp. measuring medium is thus assured. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration or aggressive media.

A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking. A LABS-free resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or factory certifications for drink water resp. food suitability.


Precont PS4SM

Precont PS4SM

Description

Due to the device construction as well as the availability of industrial standard process connections the device Precont PS4SM is especially suitable for the use for machinery and plant engineering, air-conditioning and refrigeration plant engineering, hydraulic and pneumatic systems, process industry and environmental technology. The pressure switch is suitable for demanding measuring requirements.

Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications. The pressure switch with front-flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallizing, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections.

The front-flush diaphragm is completely welded with the process connection and supplied with a positive seal. A reliable, dead-space free sealing between the process connection and the process adapter resp. measuring medium is thus assured. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration or aggressive media.

A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking. A LABS-free resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or factory certifications for drink water resp. food suitability.


Precont PS4LM

Precont PS4LM

Description

The Precont PS4LM is an electronic pressure switch for monitoring, control as well as continuous measurement of pressures in gases, vapors, liquids and dusts. The pressure switch is suitable for demanding measuring requirements. Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications. The pressure switch with front-flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallizing, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections. Through its optimized design, the front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process.

The device is particularly suitable for the special conditions of CIP/SIP cleaning processes, such as chemical stability towards cleaning liquids and high temperatures. Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with frequently changing media. The front-flush diaphragm is completely welded with the process connection and supplied with a positive seal. A reliable, dead-space free sealing between the process connection and the process adapter resp. measuring medium is thus assured.

The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration or aggressive media. A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.

A LABS-free resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or factory certifications for drink water resp. food suitability.


Precont PU4SE

Precont PU4SE

Description

The device Precont PU4SE is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures. A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements. Due to its high accuracy and the digital adjustability by HART, RS485 Modbus-RTU or IO-Link the device Precont PU4SE can be suited to a wide variety of applications. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.

A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.

A LABS- resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or a factory certifications for drink water suitability. Customer specific special versions can be realized short-term on request, e.g. special designs for the process connection or other process materials.


Precont PU4SC

Precont PU4SC

Description

The device Precont PU4SC is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures. A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements. The front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process, also by CIP/SIP cleaning processes. Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with viscose or also frequently changing media. Due to its high accuracy and the digital adjustability by HART, RS485 Modbus-RTU or IO-Link the device Precont PU4SC can be suited to a wide variety of applications.

The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media. A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.

A LABS- resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or a factory certifications for drink water suitability. Customer specific special versions can be realized short-term on request, e.g. special designs for the process connection or other process materials.


Precont PU4SK

Precont PU4SK

Description

The device Precont PU4SK is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures. A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements. The front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process, also by SIP cleaning processes.

Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with viscose or also frequently changing media. Due to its high accuracy and the digital adjustability by HART, RS485 Modbus-RTU or IO-Link the device Precont PU4SK can be suited to a wide variety of applications. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.

Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking. A LABS- resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or a factory certifications for drink water suitability.


Precont PU4SM

Precont PU4SM

Description

The device Precont PU4SM is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures. A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements. The front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process.

Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with viscose or also frequently changing media. Due to its high accuracy and the digital adjustability by HART, RS485 Modbus-RTU or IO-Link the device Precont PU4SM can be suited to a wide variety of applications.

The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.

A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.


Precont PU4LMPrecont PK4SH

Precont PU4LM
Precont PK4SH

Description

The device Precont PU4LM is an electronic pressure transmitter for monitoring, control as well as continuous measurement of pressures in gases, vapors, liquids and dusts. Due to the device construction with measuring ranges from -1 bar to 25 bar (gauge), measuring ranges from 0 bar to 25 bar (absolute), measuring spans from 100 mbar to 25 bar, process temperatures from –20°C to +150°C, environmental temperatures from –40°C to +100°C, process material CrNi-steel as well as the availability of a variety of hygienic EHEDG-conformal process connections like thread ISO 228-1 with front-flush O-ring gasket, dairy coupling DIN 11851, Varivent®, DRD the device is especially suitable for the use for food and beverage industry, pharmaceutical industry, biotechnology and sterile process engineering.

The device Precont PU4LM is suitable for demanding measuring requirements. Due to its high accuracy and the digital adjustability by HART (7.0) or RS485 Modbus RTU, the device can be suited a wide variety of applications. The device with front-flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallizing, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections.

Through its optimized design, the front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process. The device is particularly suitable for the special conditions of CIP/SIP cleaning processes, such as chemical stability towards cleaning liquids and high temperatures. Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with frequently changing media.

The front-flush diaphragm is completely welded with the process connection and supplied with a positive seal. A reliable, dead-space free sealing between the process connection and the process adapter resp. measuring medium is thus assured. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.


Pressure transmitter Precont TM Precont ExTM

Pressure transmitter
Precont TM
Precont ExTM

Description

The Precont TM is a very rugged overload resistive pressure transmitter for gases, steams, liquids and dusts in hard industrial applications. By use of a dry capacitive ceramic measurement sensor in combination with high-grade steel 1.4571 (V4A), this pressure transmitter can be also used in very aggressive substances. The ceramic membrane has also an extreme overload resistance, highest measurement precision, long life time and no need for maintenance.
