Special Controllers

West Instruments

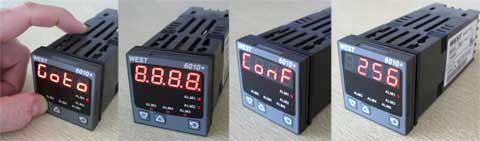

6010

We offer a comprehensive product range for professional temperature control in science, research and industry. Because of the versatility of application areas equipment, it is possible that specific applications require individual temperature control solutions. In this section we show you various options for the exact customization equipment to your specific needs.

As the name implies, a temperature controller - often called a PID controller is an instrument used to control temperature. The temperature controller takes an input from a temperature sensor and has an output that is connected to a control element such as a heater or fan. To accurately control process temperature without extensive operator involvement, a temperature control system relies upon a controller, which accepts a temperature sensor such as a thermocouple or RTD as input. It compares the actual temperature to the desired control temperature, or setpoint, and provides an output to a control element.

Looking for the price? [x]
Copy & paste part number:

ET2011ET2001ET2411ET2412EDT2411EDT2412EDT2423

ET2011
ET2001
ET2411
ET2412
EDT2411
EDT2412
EDT2423

ET2011 ET2001 ET2411 ET2412
35 x 77 мм (29 x 71 мм окно)
Thermostat Thermostat Thermostat Thermostat
Input Type Thermocouple (J,K,T,S,R)
or PT100
Thermocouple (J)
NTC NTC
Relay Outputs 1 1 1 2
SSR Outputs 1 0 0 0
Control Type ON/OFF, PID ON/OFF ON/OFF ON/OFF

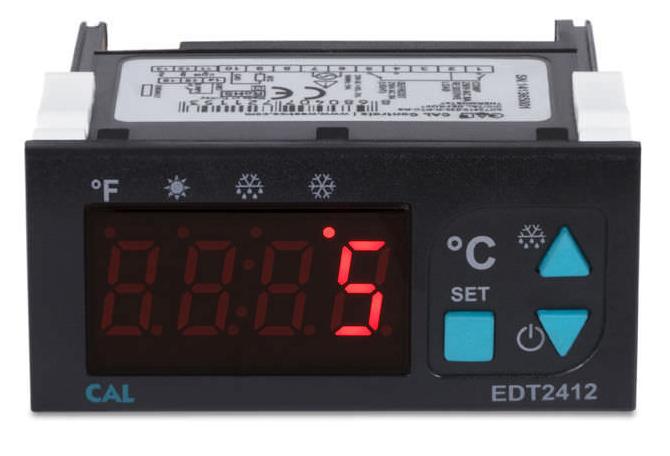

EDT2411 EDT2412 EDT2423
35 x 77 мм (29 x 71 мм окно)
Defrost Thermostat Defrost Thermostat Defrost Thermostat
Input Type NTC x 1 NTC x 1 NTC x 2
No. of Relay Outputs 1 2 3
No. of SSR Outputs 0 0 0
Defrost Output
Fan Output
Defrost Sensor Output
CAL-Key Flash Memory Programming
Real-Time Clock Option
RS 485 Modbus Communications Option
