INSEVIS products expand and simplify the world of S7. Our S7 product families are proof of how well innovative system solutions and German workmanship are combined with a competitive price. The world's most compact S7 touch panel PLCs with onboard IOs and the IIoT-capable EDGE HMIs with MQTT, OPC UA, NodeRED and an automatically created web visualization. The functions are described in detail in manuals with example programs. Demo programs and videos are also available for you to download. Customized logos can be implemented on front- or rear side easily. Operating systems with custom logos are available as well.
Product family Compact-PLC is a S7 DIN rail controllers with onboard advantage. These S7 PLCs can be programmed in S7 with the SimaticManager or the TIA-Portal from Siemens. Equipped with sufficient memory, extensive communication channels such as Ethernet (TCP, UDP and S7 communication), Modbus-TCP and -RTU, CANopen as well as RS232 and RS485 and optionally Profibus DP master/slave or Profinet IO controller. Special function blocks and free remote visualization allow extensive additional functions without an additional budget, all under S7. With onboard and/or decentralized peripherals in fine gradations. Designed in robust and EMC-proof metal housings for the temperature range of -20…+60°C. Effective copy protection through read protection is possible onboard at no extra cost.
👆 We invite to co-operation engineering companies and system integrators who have the ability, ambition and resources to implement projects based on INSEVIS PLCs.

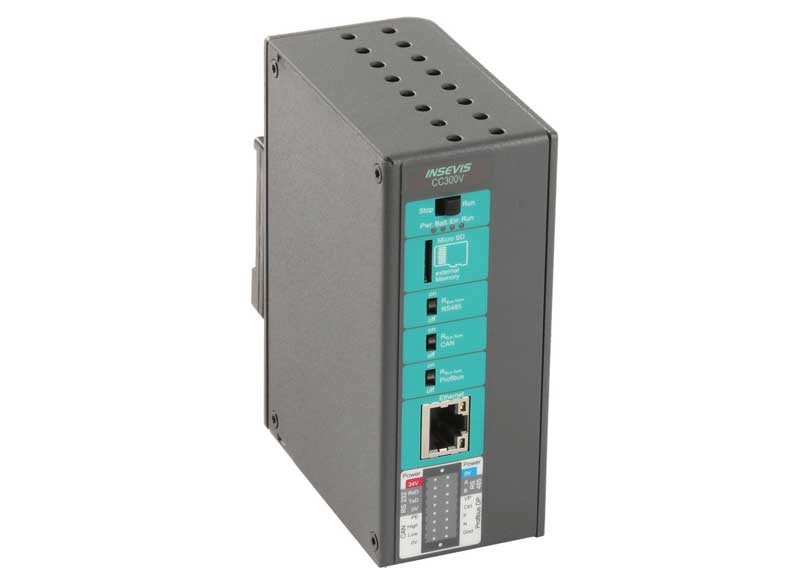

✅ The CC300V is a S7 slim PLC for DIN rail mounting without I/O slots.
With a width of just 27...50 mm, the S7-PLC CC300V/T has an enormous amount of RAM and a wide range of interfaces: Ethernet (S7 communication Put/Get, -TCP and -UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optionally Profibus DP V0 (master/slave for CPU-V). The connection of external peripherals via Modbus or CAN, the networking via S7 communication, everything is easily parameterized in the free ConfigStage and makes this "CPU only" without I/Os a communications talent.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

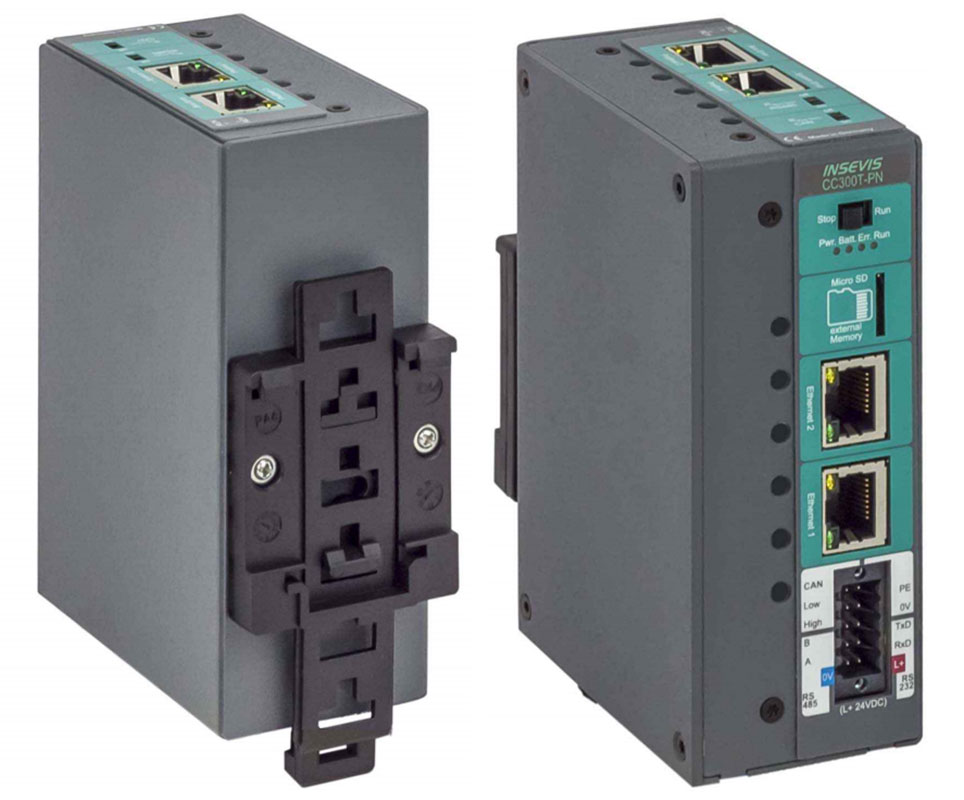

✅ The CC300T is a S7 slim PLC for DIN rail mounting without I/O slots.
With a width of just 27...50 mm, the S7-PLC CC300T has an enormous amount of RAM and a wide range of interfaces: Ethernet (S7 communication Put/Get, -TCP and -UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optionally Profinet IO controller for CPU-T for use as an S7-programmable gateway or data logger. The connection of external peripherals via Modbus or CAN, the networking via S7 communication, everything is easily parameterized in the free ConfigStage and makes this "CPU only" without I/Os a communications talent.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The CC301T is a S7 slim PLC for DIN rail with fixed peripherals.
In this device CC301T, which is only 46 mm wide, there is not only the S7-PLC CC300T with its large RAM and a lot of interfaces (2x Ethernet (S7 communication Put/Get, -TCP and -UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII), but also 12 digital inputs or outputs (PWM, PushPull), 12 counting inputs (1 kHz / 100 kHz), 3 analog inputs or outputs (for current or voltage) and 3 analog inputs (for current, voltage, resistance measurement, thermocouple and strain gauge). And everything is well protected in a metal housing.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

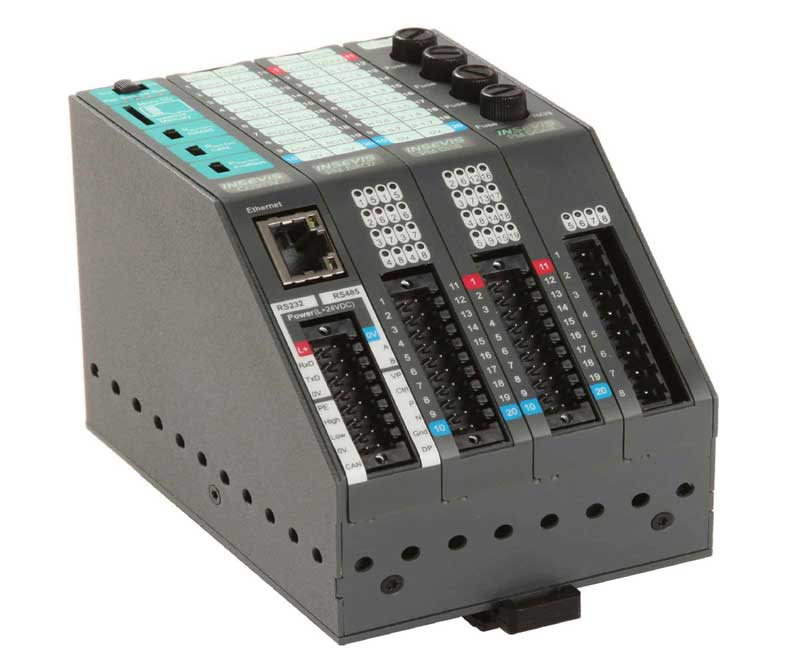

✅ The CC303V is a S7 PLC for DIN rail with 3 slots for peripherals.
At just 82mm wide, the CC303V already includes 3 slots for onboard peripherals under the EMC-proof rear panel. The label can include your logo and article numbers if desired. Of course, you can continue to use the peripherals you have been using up to now via Modbus (TCP and RTU), CANopen, Ethernet and optionally Profibus, as these interfaces are integrated in the CPU. With VisuStage, simple visualizations can be created for any PC monitor format, and with RemoteStage, they can also be displayed and operated remotely. This gives you a completely free visualization of this S7 PLC.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

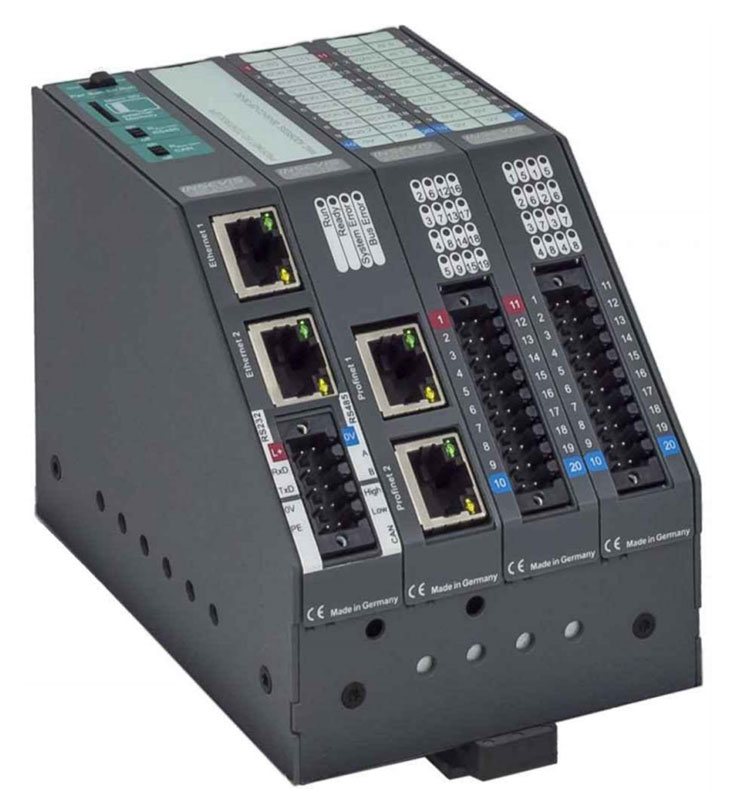

✅ The CC303T is a S7 PLC for DIN rail with 3 slots for peripherals.
At just 82 mm wide, the CC303T already includes 3 slots for onboard peripherals under the EMC-proof rear panel. The label can include your logo and article numbers if desired. Of course, you can continue to use the peripherals you have been using up to now via Modbus (TCP and RTU), CANopen, Ethernet and optionally Profinet, as these interfaces are integrated in the CPU. With VisuStage, simple visualizations can be created for any PC monitor format, and with RemoteStage, they can also be displayed and operated remotely. This gives you a completely free visualization of this S7 PLC.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

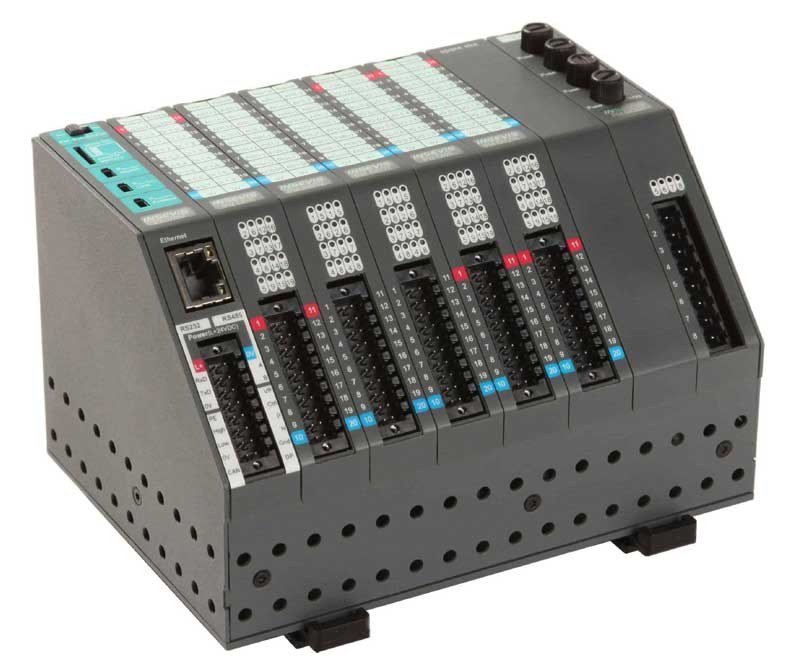

✅ The CC307V is a S7 PLC for DIN rail with 7 slots for peripherals.
Also only 161 mm wide: the CC307V with 7 slots for onboard peripherals under the EMC-resistant and powder-coated rear panel. Of course, you can continue to use the peripherals you have been using up to now via Modbus (TCP and RTU), CANopen and Ethernet, as well as optionally Profibus or Profinet, as these interfaces are integrated in the CPU. The label can include your logo and article number if desired. With VisuStage, you can easily create a visualization for your PC, and with RemoteStage you can also display and operate it remotely. This gives you a completely free visualization of this S7 PLC.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

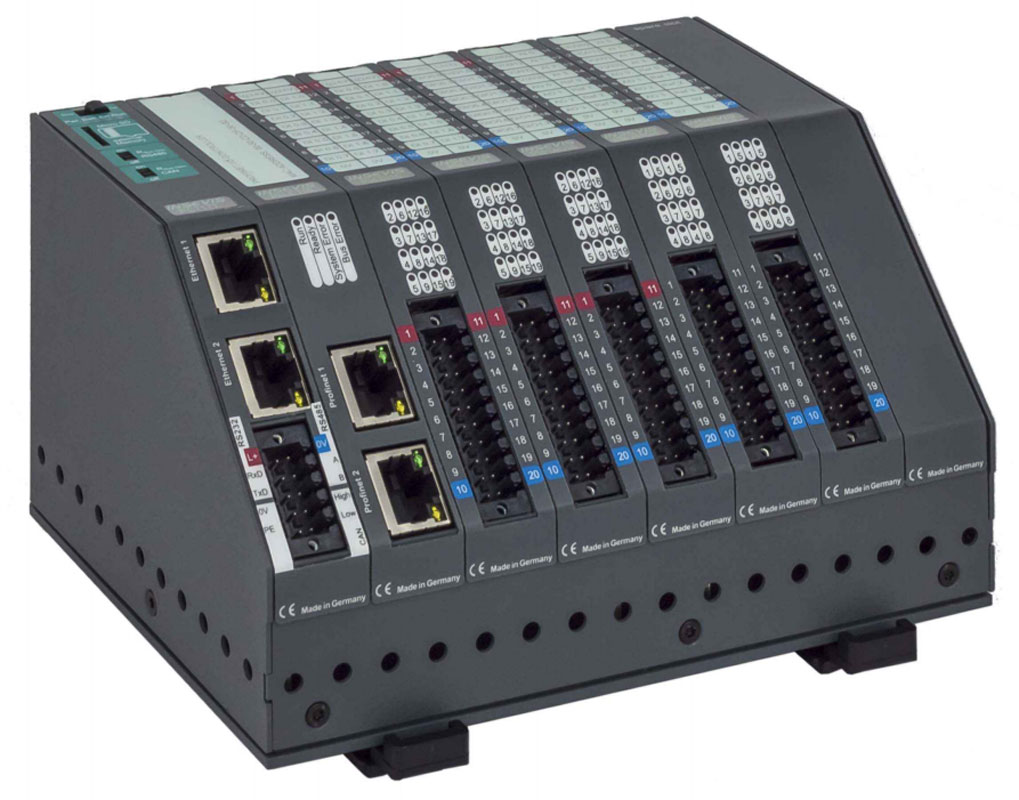

✅ The CC307T is a S7 PLC for DIN rail with 7 slots for peripherals.
Also only 161mm wide: the CC307T with 7 slots for onboard peripherals under the EMC-resistant and powder-coated rear panel. Of course, you can continue to use the peripherals you have been using up to now via Modbus (TCP and RTU), CANopen and Ethernet, as well as optionally Profibus or Profinet, as these interfaces are integrated in the CPU. The label can include your logo and article number if desired. With VisuStage, you can easily create a visualization for your PC, and with RemoteStage you can also display and operate it remotely. This gives you a completely free visualization of this S7 PLC.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

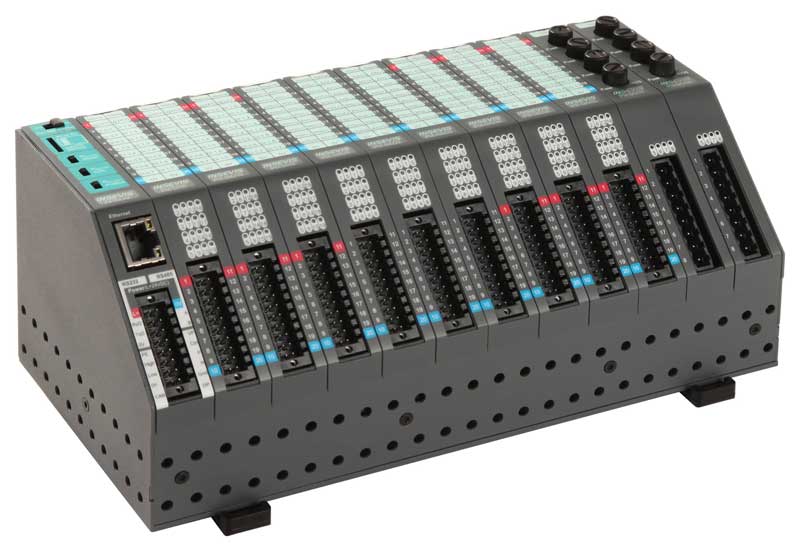

✅ The CC311V is a S7 PLC for DIN rail with 11 slots for peripherals.
Already 240 mm wide, but also with 11 onboard peripheral slots: the S7 PLC CC311V. If that is not enough, the decentralized INSEVIS peripherals are the simplest solution for more peripherals. Despite the enormous onboard and decentralized peripheral expansion with INSEVIS modules, the peripherals you have used up to now can still be used. Via Modbus (TCP and RTU), CANopen and Ethernet as well as optionally Profibus or Profinet, because these interfaces are integrated in the CPU. Free, customer-specific: the slot marking. Likewise, up to 5 extensive visualizations for this S7 PLC can be created free of charge and displayed and operated remotely on your PC.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

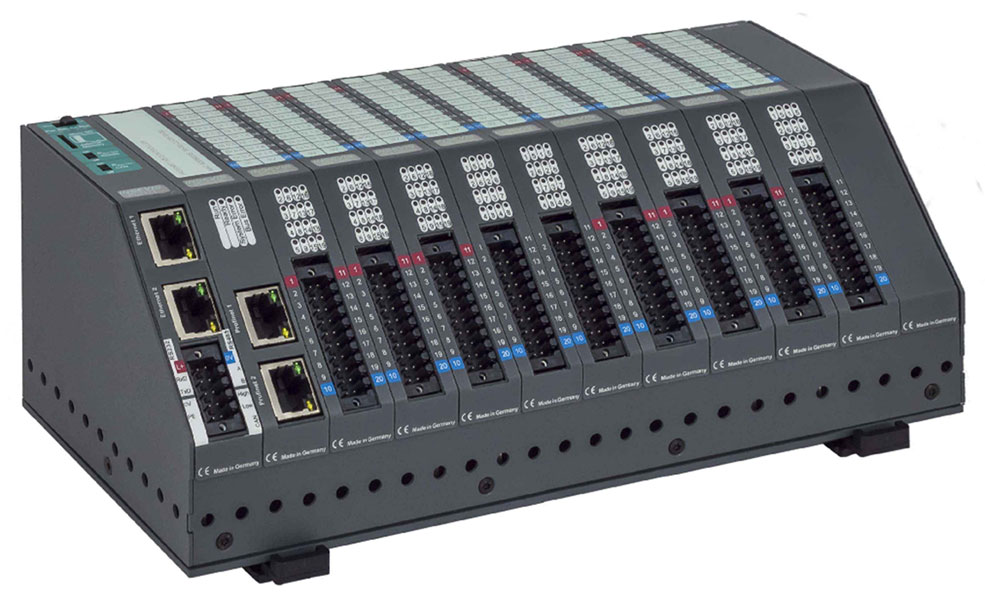

✅ The CC311T is a S7 PLC for DIN rail with 11 slots for peripherals.
Already 240 mm wide, but also with 11 onboard peripheral slots: the S7 PLC CC311T. If that is not enough, the decentralized INSEVIS peripherals are the simplest solution for more peripherals. Despite the enormous onboard and decentralized peripheral expansion with INSEVIS modules, the peripherals you have used up to now can still be used. Via Modbus (TCP and RTU), CANopen and Ethernet as well as optionally Profibus or Profinet, because these interfaces are integrated in the CPU. Free, customer-specific: the slot marking. Likewise, up to 5 extensive visualizations for this S7 PLC can be created free of charge and displayed and operated remotely on your PC.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
