INSEVIS products expand and simplify the world of S7. Our S7 product families are proof of how well innovative system solutions and German workmanship are combined with a competitive price. The world's most compact S7 touch panel PLCs with onboard IOs and the IIoT-capable EDGE HMIs with MQTT, OPC UA, NodeRED and an automatically created web visualization. The functions are described in detail in manuals with example programs. Demo programs and videos are also available for you to download. Customized logos can be implemented on front- or rear side easily. Operating systems with custom logos are available as well.
Product family Panel-PLC is a combination of PLC and HMI in one compact device. Control, visualize, communicate in the smallest of spaces. The most compact way to automate - and with INSEVIS S7 panel PLCs also the most economical. IP65-proof, metal housing, programmable in S7 with SimaticManager or the TIA Portal from Siemens. Equipped with extensive communication channels such as Ethernet, Modbus, CAN, RS232 and RS485 and Profibus DP or Profinet IO controller. With onboard and/or decentralized peripherals in fine gradations. Open to third-party peripherals and closed to illegal copiers.
👆 We invite to co-operation engineering companies and system integrators who have the ability, ambition and resources to implement projects based on INSEVIS PLCs.
✅ The PC350 is a S7 panel PLC with 3.5″ monitor and without peripherals. You have to look twice: A small 3.5" touch panel and an S7 PLC built very compactly. The external peripherals are accessed via the many interfaces. Often used as an entry-level model or for additional display and operating devices in the S7 control network. In addition to the decent RAM (512/640kB), the interfaces Ethernet (S7 communication, TCP, UDP), Modbus (-TCP and -RTU, CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optionally Profibus DP V0 (-master and -slave) favor the device for use as a data logger or gateway with data preprocessing.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC351 is a S7 panel PLC with 3.5″ monitor and with fixed onboard peripherals. Welcome to the smallest S7 touch panel PLC with onboard peripherals in the world! 4 digital and 2 analog inputs or outputs are hidden under the compact rear panel. More are of course possible in a decentralized manner. The brilliant image and extremely compact dimensions favor these devices for small solutions, which can, however, be performance giants. With a depth of just 50mm, it is ultra-compact and yet with Ethernet (S7 communication, TCP and UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profibus DP V0 master and slave, the device is a true communications miracle.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

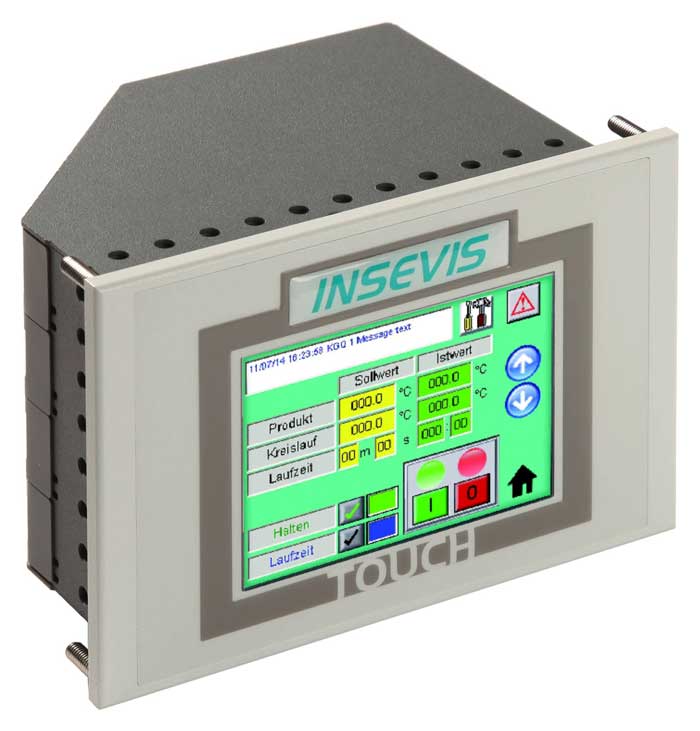

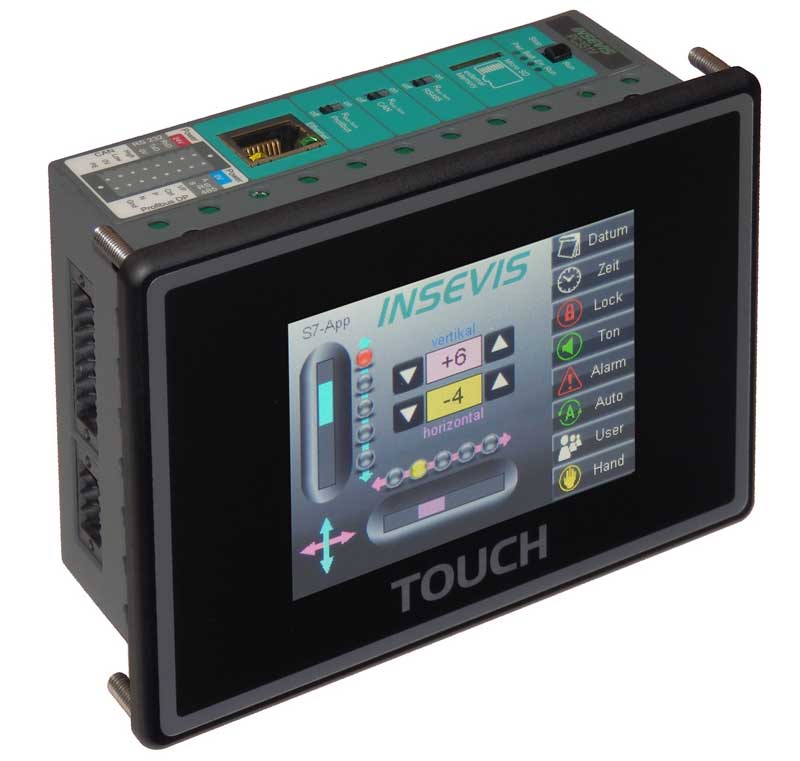

✅ The PC353 a S7 panel PLC with 3.5″ monitor and with modular onboard peripherals.
If you want to address a lot of peripherals in a modular way in a very small space, this S7 panel PLC, which is only 89 mm deep, is the perfect choice. Up to 48 digital or 30 analog inputs or outputs fit under the high-quality rear panel. This solution often replaces the aging C7 devices and gives machines a second life. Thanks to the large RAM (512/640 kB) and the many interfaces such as Ethernet (S7 communication, TCP and UDP), Modbus (-TCP and -RTU, CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profibus DP V0 master and slave, these devices are favored as data loggers, BDE devices and gateways with S7-programmable data preprocessing.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC430 is a S7 panel PLC with 4.3″ monitor and without peripherals. 26 mm installation depth for an S7 panel PLC – world record! S7 power dwarfs with a brilliant and very fast touch display with 480x272 px. And always S7 programmable with the well-known Siemens tools SimaticManager and TIA Portal. If you need CPU performance and memory and don't have to display much, you've found your S7 controller here. Whether as a stand-alone device or additional display and operating devices in the S7 control network. In two versions: 26 mm installation depth without and 45 mm installation depth with Profinet. Both have 2 separate Ethernet (S7 communication Put/Get, TCP, UDP), Modbus -TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). A 4-way VNC server is also included.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC431T is a S7 panel PLC with 4.3″ monitor and with fixed onboard peripherals.
If you expand the world's most compact S7 touch panel PLC with a peripheral board, the result is another world record!
The INSEVIS engineers have accommodated an incredible 12 digital IOs (switchable, of course, PWM and PushPull), 12 counting digital inputs, 3 analog channels (individually as input or output and each for current or voltage) and 3 analog inputs for current or voltage or RTD or thermocouple or for strain gauges) in an additional 17 millimeters, RESPECT! Of course, the interfaces have remained: 2 separate Ethernet (S7 communication-Put/Get, TCP, UDP), Modbus -TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). A 4-way VNC server is also already included.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC433 is a S7 panel PLC with 4.3″ monitor and modular onboard peripherals. Designed for use in the tightest of spaces: the PC433T, which is less than 90mm deep and can also accommodate up to 48 digital or 30 analog inputs or outputs. It can be installed horizontally or vertically, with the connector level inclined towards the cable duct. Field devices are addressed via the onboard interfaces Modbus-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII). The two separately configurable Ethernet interfaces enable integration into separate networks. The brilliant and extremely fast touch displays can be used horizontally and vertically, there are no restrictions on visualization or remote access. A 4-way VNC server is also included.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC570 is a S7 panel PLC with 5.7″ monitor and without onboard peripherals.
If you miss the well-known TP/MP170 panel format, this module is not only a replacement, but it also has the S7 CPU integrated! And a very powerful one with a large working, loading and visualization memory and a good number of interfaces: Ethernet (S7 communication, TCP and UDP), Modbus (TCP and RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optionally Profibus DP V0 master and slave. This is why this small panel PLC is a true communications miracle. Decentralized peripherals, communication with control systems, remote visualization, everything is easy to configure and parameterize.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC577 is a S7 panel PLC with 5.7″ monitor and modular onboard peripherals.
Workhorse, bread and butter control, performance miracle. No other INSEVIS panel PLC has been at home in so many series products for years as this module, which is only 95 mm deep and can accommodate up to 112 digital or 72 analog I/Os under the solidly manufactured rear panel. If that is not enough, there are enough interfaces for other external modules: Ethernet (S7 communication, TCP and UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optionally Profibus DP V0 master and slave. Not bad for the size, right? Of course, optionally with customer logo. On the back or in the firmware.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

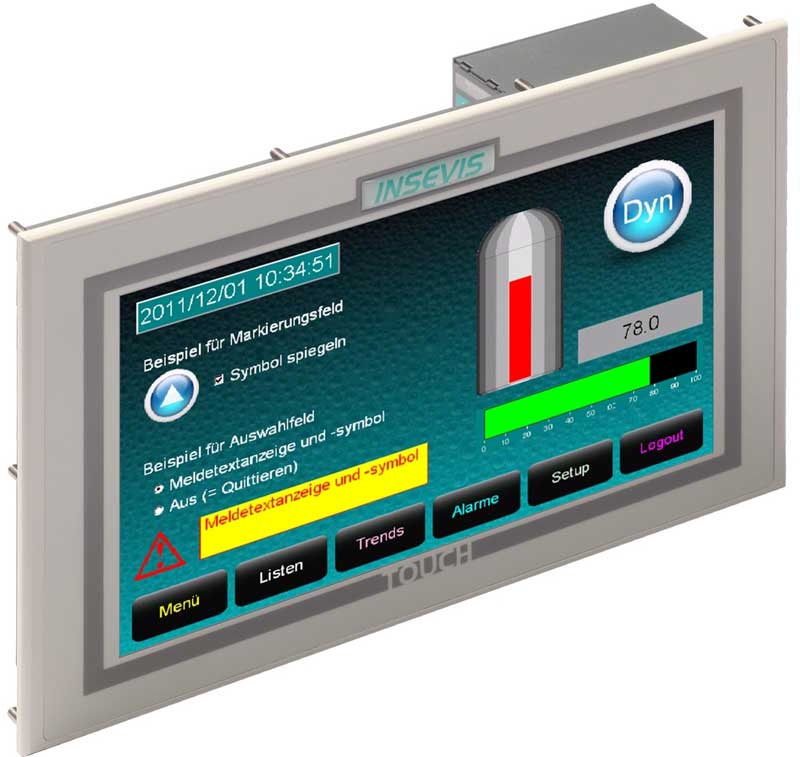

✅ The PC710T is a S7 panel PLC with 7.0″ monitor and without onboard peripherals.
The new standard in 16:9 format with 800x480 pixel resolution and only 45mm thick. Decentralized field devices are connected via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). The two separately configurable Ethernet interfaces enable integration into your customer's machine network and at the same time provide you with service access in a separate network. There are 2 device versions; one with and one without a Profinet IO controller. The brilliant touch displays can be used horizontally or vertically. There are no restrictions on visualization or remote access. A 4-way VNC server is already integrated.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

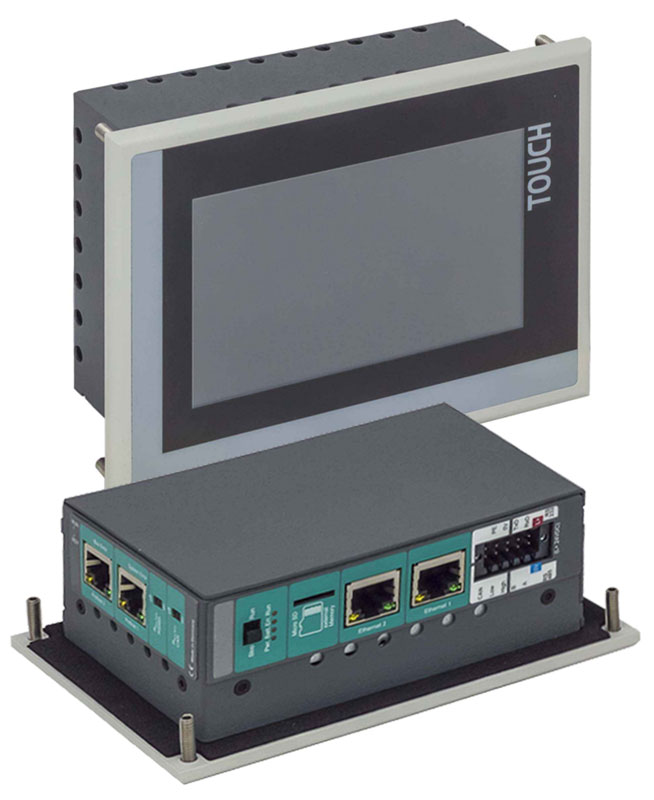

✅ The PC711T is a S7 panel PLC with 7.0″ monitor and with fixed peripherals.
INSEVIS shows how to bring 12 digital inputs or outputs, 12 counting inputs, 3 analog channels, each of which can be individually configured as an input or output and for current or voltage, and another 3 analog inputs, which can be almost anything, onto a 7" panel PLC with this panel PLC with a depth of just 44 (!) mm. Decentralized field devices are connected via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). The two separately configurable Ethernet interfaces enable integration into your customer's machine network and at the same time provide you with service access in a separate network.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

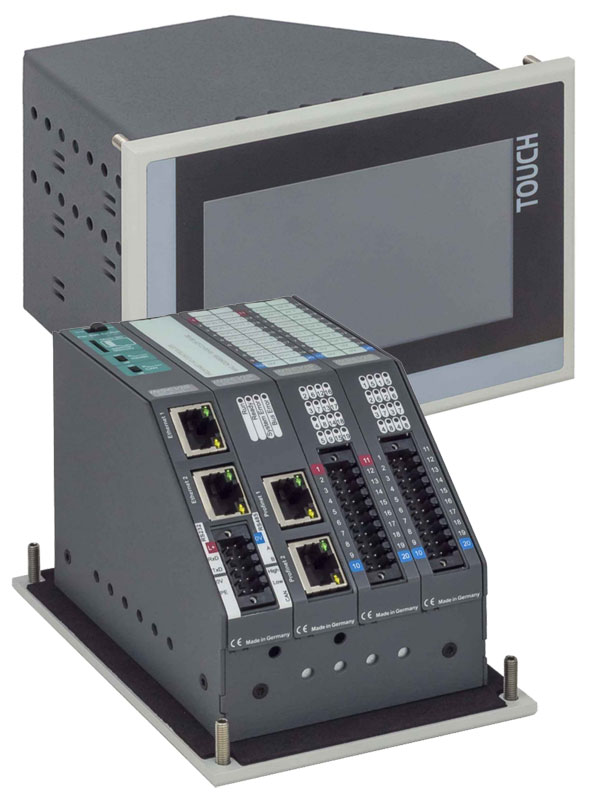

✅ The PC717T is a S7 panel PLC with 7.0″ monitor and with modular onboard peripherals.
If you integrate 7 slots for onboard peripherals into the PC710T, you get the extremely compact PC717T panel PLC with a depth of 95mm. The 7 slots are sufficient for up to 112 digital or 70 analog inputs or outputs. The rest is addressed via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Here too, the two separately configurable Ethernet interfaces enable the device to be integrated into your customer's machine network and at the same time provide you with service access in your own network. The obligatory 4-way VNC server is of course also onboard.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

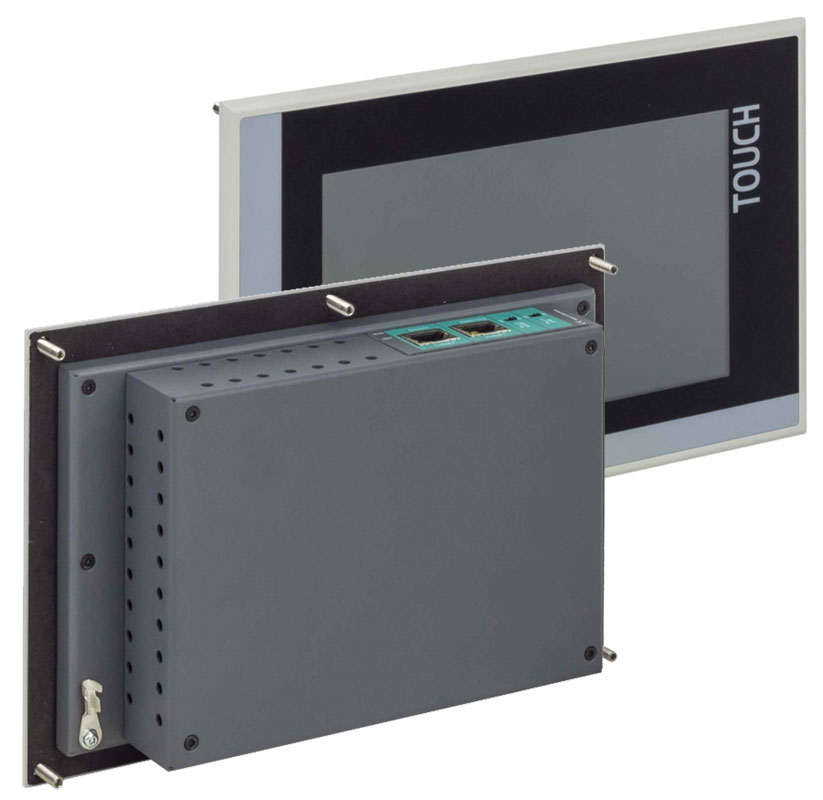

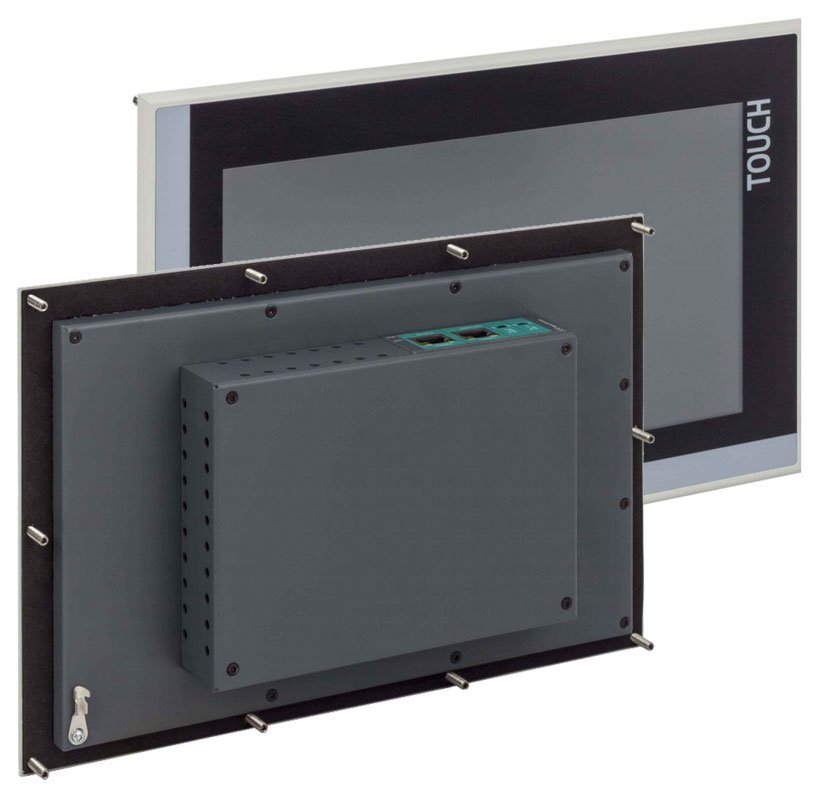

✅ The PC1010T is a S7 panel PLC with 10.1″ monitor and without onboard peripherals.
The S7 panel PLC PC1010T has a high-resolution, brilliant touch display with 1024×600 pixels and plenty of space for objects per page. Not unimportant at this size: no runtime license or PowerTag costs hinder the realization of your visualization ideas. There is also an integrated 4-way VNC server. Now in 2 device versions; one with and one without Profinet. Like all flat S7 panel PLCs, ideal for a solution with remote peripherals. The simplest peripheral connection is of course with INSEVIS peripherals, but all other third-party peripherals with Modbus TCP and RTU, CANopen, Ethernet or Profinet interfaces can also be easily mapped.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC1011T is a S7 panel PLC with 10.1″ monitor and with fixed peripherals.
If you need to build compactly and only need a few inputs or outputs, this module is the perfect solution: The well-known S7 panel PLC PC1011T with its high-resolution, brilliant touch display with 1024×600 pixels and the powerful T-CPU with 2x Ethernet, Modbus-TCP and -RTU, RS232 and RS485 and of course the CANopen master interface includes 12 digital inputs or outputs, 12 counting inputs, 3 analog channels on the back of the PC1011T, where each channel can be configured as an input or output and each for current or voltage. And another 3 analog inputs for current, voltage, RTD, thermocouples and strain gauges in an incredible 48mm depth.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC1017T is a S7 panel PLC with 10.1″ monitor and for modular onboard peripherals .
If you integrate 7 slots for onboard peripherals into the PC1017T, you get the extremely compact PC1017T panel PLC with a depth of 98mm. The 7 slots are sufficient for up to 112 digital or 70 analog I/Os. Often only a few I/Os are used for the onboard handheld controls. The rest are addressed via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Here too, the two separately configurable Ethernet interfaces enable the device to be integrated into your customer's machine network and at the same time provide you with service access.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

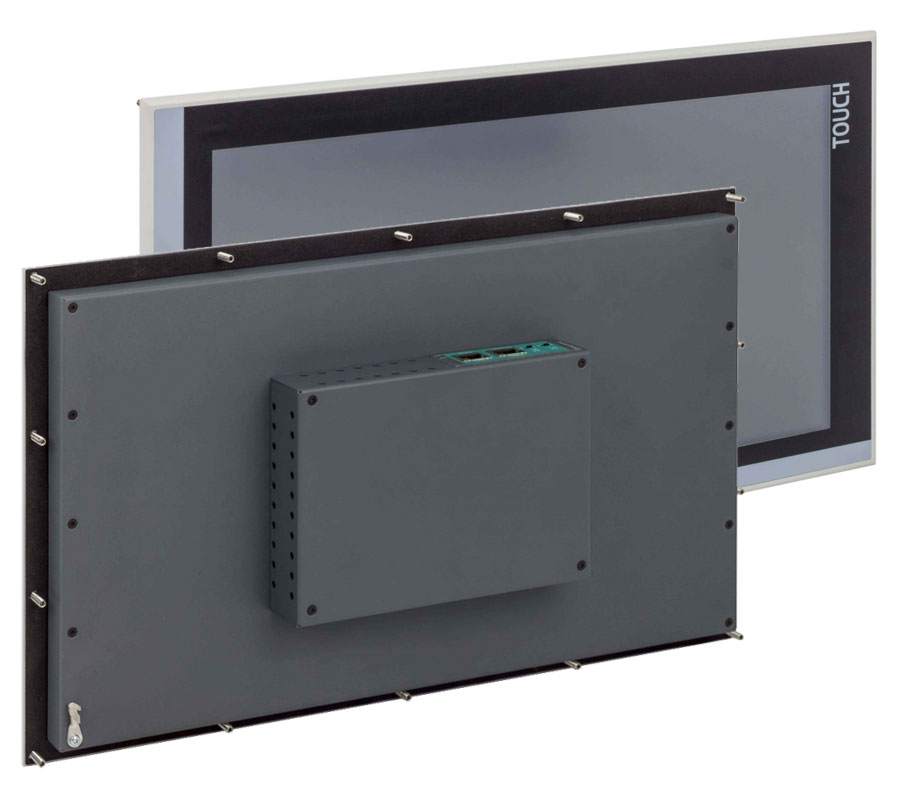

✅ The PC1560T is a S7 panel PLC with 15.6″ monitor and without onboard peripherals.
The PC1560T panel PLC has the largest diagonal currently available at 15.6" with 1366x768 pixels. Not unimportant at this size: With INSEVIS, no runtime license costs hinder the realization of your visualization ideas and the whole thing can be updated even after years, even without a PC as an aid. A 4-way VNC server is integrated. Like all flat panel PLCs, it is ideal for a solution with remote peripherals. The simplest peripheral connection is of course with INSEVIS peripherals, but all other third-party peripherals with Modbus, CAN, Ethernet or Profinet interfaces can also be easily mapped. If desired, with your own firmware with your logo permanently burned in - this will set you apart from your competition.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
✅ The PC1561T is a S7 panel PLC with 15.6″ monitor and with fixed peripherals.
The PC1561T panel PLC expands the well-known PC1560T panel PLC with the fixed peripheral module already used in smaller devices with 12 digital inputs or outputs (switchable bit by bit and with PWM and push-pull functions), 12 digital inputs (counter with 1kHz/100kHz), 3 analog channels (each input or output and each for current or voltage) and 3 further analog inputs for current, voltage, RTD, thermocouples and strain gauges. The incredibly flat design of just 54mm allows many applications with particularly compact requirements.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)

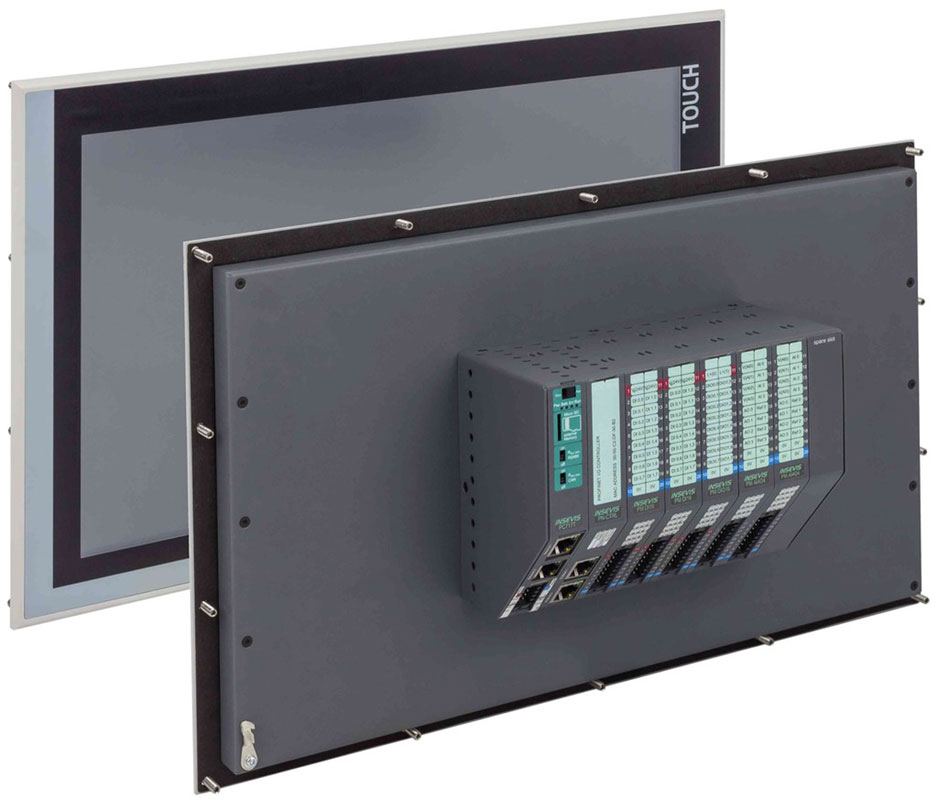

✅ The PC1567T is a S7 panel PLC with 15.6″ monitor and for modular onboard peripherals.
If you integrate 7 slots for onboard peripherals into the PC1560T, you get the extremely compact PC1567T panel PLC with a depth of 104 mm. The 7 slots are sufficient for up to 112 digital or 70 analog I/Os, the rest is addressed via the onboard interfaces Modbus (TCP and RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Here too, the two separately configurable Ethernet interfaces enable the device to be integrated into your customer's machine network and at the same time provide you with service access. Labeling the firmware with the customer's logo is possible from a quantity of 1.
Standard configuration: RS232 with free ASCII-protocol
RS485 with free ASCII protocol Modbus RTU
Ethernet with- RFC1006 (S7-Connect-Put/Get), Comm via TCP/UDP, Modbus TCP
CAN with- CANopen- layer2-communication
Micro-SD slot for SD-cards up to 8 Gbyte
Run/Stop switch
Status LEDs for Power, Battery, Error, Run
Inserting stripes for Logo and ident (customized adaption possible)
