INSEVIS products expand and simplify the world of S7. Our S7 product families are proof of how well innovative system solutions and German workmanship are combined with a competitive price. The world's most compact S7 touch panel PLCs with onboard IOs and the IIoT-capable EDGE HMIs with MQTT, OPC UA, NodeRED and an automatically created web visualization. The functions are described in detail in manuals with example programs. Demo programs and videos are also available for you to download. Customized logos can be implemented on front- or rear side easily. Operating systems with custom logos are available as well.
Product family Software - S7 software tools from INSEVIS – Implement complex tasks easily. The simple is the hardest. Our S7 software solves complex requirements in an ingeniously simple way. If you want to find your way around your project straight away, even after months of assembly, use INSEVIS. With a wide range of functions but a small program size. Whether as a drag and drop configurator or extensive visualization, whether as a multi-instance remote access tool or a useful service tool with the ultimate know-how protection. Useful, free. Our engineers maintain the software and keep adding new functions - at no additional cost. Because there are enough independent minds at INSEVIS itself, there is also a free remote visualization solution not only for INSEVIS PLCs, but for all Ethernet-capable S7 PLCs.
👆 We invite to co-operation engineering companies and system integrators who have the ability, ambition and resources to implement projects based on INSEVIS PLCs.

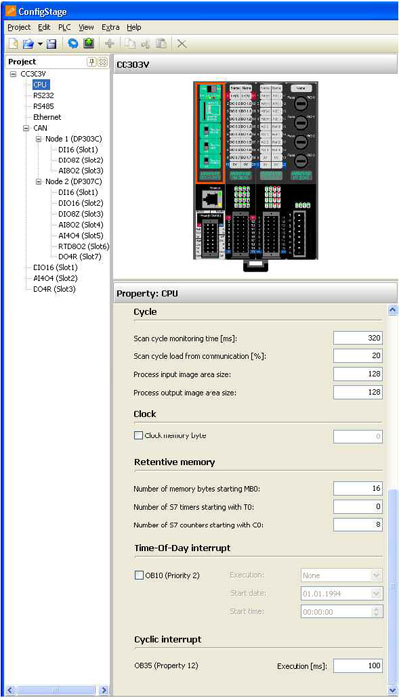

✅ Configuration software ConfigStage
S7 configuration using ConfigStage is child's play. This free Windows software for parameterizing the CPU and communication interfaces is intuitive to learn. The graphical assignment (mapping) of external Modbus and CAN devices in the S7 language area, as well as the reading of external CAN devices with their EDS, integrated address overview with collision check, library function and much more is a groundbreaking solution. The positioning of the INSEVIS peripheral modules is done via drag and drop, as is the easy entry of the address and measurement ranges, assignment of the wiring and functions of the modules, etc. NEW: From V1.0.17.0 onwards, the compact devices are integrated with fixed peripherals.
✅ Here on the manufacturer's Insevis website you will find free downloadable materials grouped into the following sections:

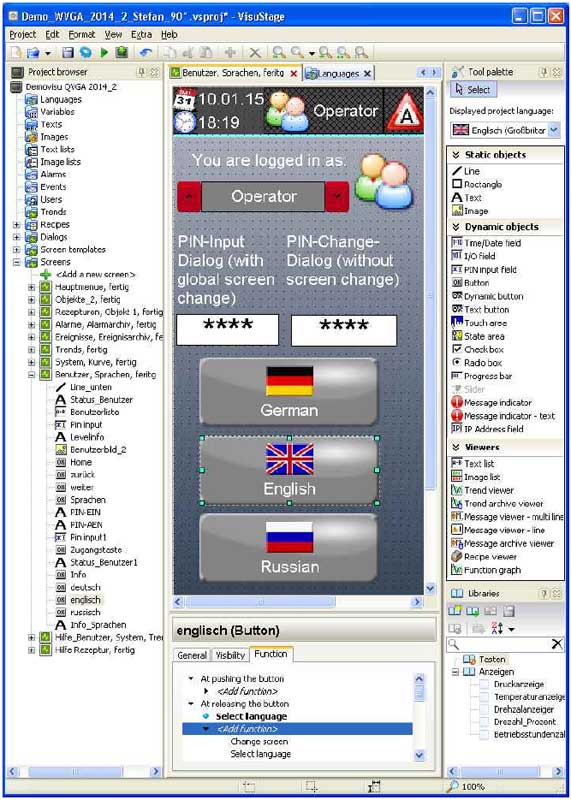

✅ Visualization software VisuStage
The visualization is the "face" of your system. The INSEVIS VisuStage gives you the opportunity to create modern and complex displays. All with simple elements and an intuitively logical operating philosophy. No endless hierarchy levels, no restrictions on tags/objects or languages. With one language, the VisuStage is even completely free. Users of the Siemens tool WinCCflex are familiar with the ergonomics, and many things have been made much easier. New: variables can now also be imported from TIA-V20.
✅ Here on the manufacturer's Insevis website you will find free downloadable materials grouped into the following sections:

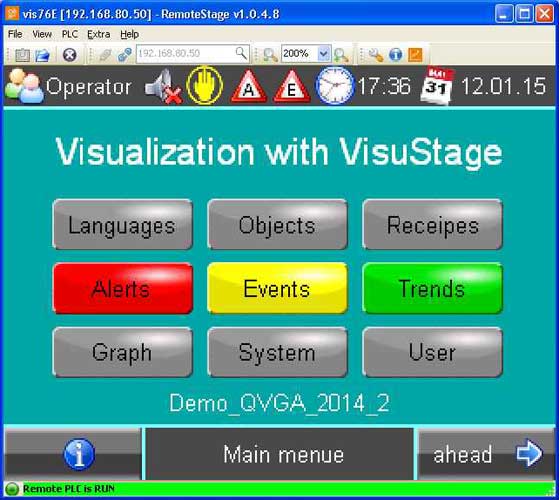

✅ Remote access with the software RemoteStage
Free S7 remote visualization with INSEVIS is very simple. The multi-instance command line tool RemoteStage is not installed because it should also be able to be integrated into a batch process. Using various call parameters, archive data can be read in from the INSEVIS panels and PLCs. Process data can also be read in from external S7 controllers and displayed remotely on the PC monitor in a visualization. During the remote session, your own archives are created. Remote visualization takes place in another program instance. The multi-instance capability means that several RemoteStage for different controllers can be displayed on one screen - just like in a control room.
✅ Here on the manufacturer's Insevis website you will find free downloadable materials grouped into the following sections:

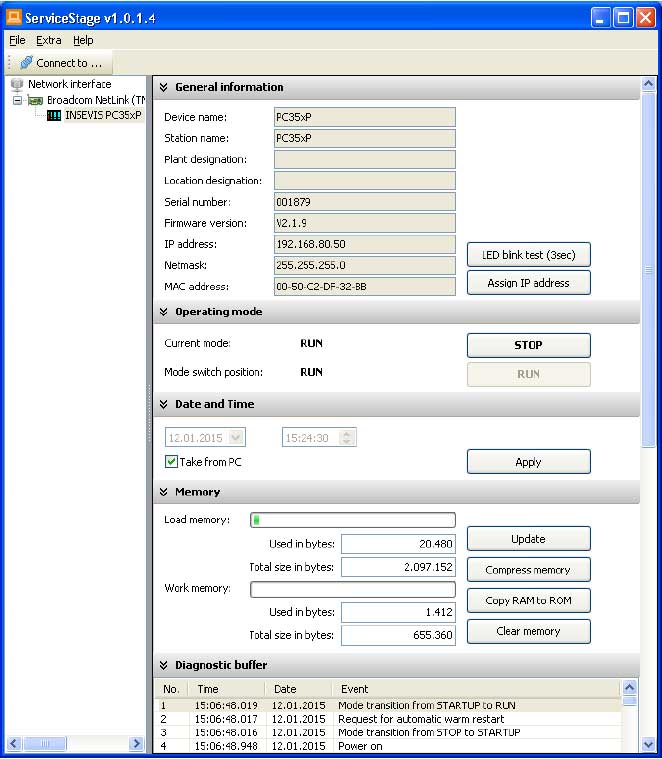

✅ Service software ServiceStage
Use the ServiceStage to access, diagnose, secure and update the INSEVIS devices. You never have to give the service staff your know-how in the form of your source data, because binaries from the visualization and WLD data from the S7 program are sufficient. With a single click, your data is protected again without a password and cannot be cracked. This makes the service simple, fast and absolutely secure. Online creation of backups to copy the data as a binary file to an identical device without a PC using a micro SD card. Or (important for remote service) that IP addresses set locally during runtime are not overwritten during the update.
NEW: ServiceStage 1.0.4.0 includes the function “Monitor/control variables”
✅ Here on the manufacturer's Insevis website you will find free downloadable materials grouped into the following sections:
