AC/DC DIN-Rail Power Supply 3 phase

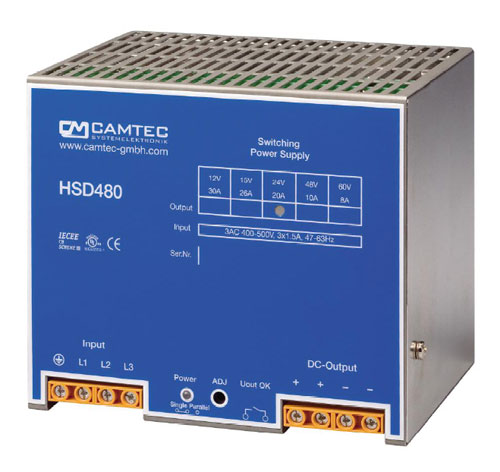

HSD04801

HSD04801

Made in Germany

The HSD04801 is a 480W DIN-Rail Power Supply 3-Phase. Metal housing, -20°C...+60°C full output power, natural convection, galvanic insulated, continuous short circuit protected, overload and low voltage protected, soft start and auto-recovery, temperature control, electronic Inrush Current Limiter, switching frequency 100 KHz, series and parallel operation, high reliability, shock and vibration resistant.

HSD04801.24T (24V / 20.0A) HSD04801.36T (36V / 13.3A)
HSD04801.48T (48V / 10.0A) HSD04801.60T (60V /8.0A)

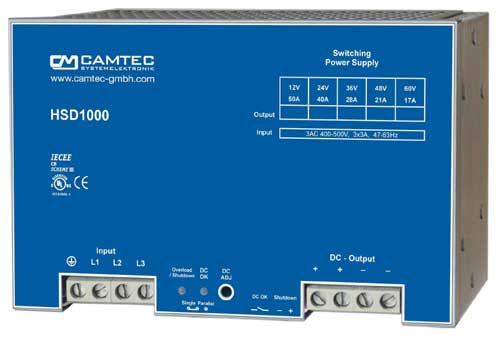

HSD10001

HSD10001

Made in Germany

The HSD10001 is a 1000W DIN-Rail Power Supply 3-Phase. Metal housing, -20°C...+60°C full output power, natural convection, galvanic insulated, continuous short circuit protected, overload and low voltage protected, soft start and auto-recovery, temperature control, electronic Inrush Current Limiter, switching frequency 100 KHz, series and parallel operation, high reliability, shock and vibration resistant.

HSD10001.12T (12V / 50A) HSD10001.24T (24V / 40A)
HSD10001.36T (36V / 28A) HSD10001.48T (48V / 21A)
HSD10001.60T (60V / 17A) HSD10001.72T (72V / 14A)
