2.4. Process displays
The company Baumer is an international business with a passion for sensor technology, encoders, measuring instruments and components for automated image processing. Through a very strong local presence in 39 subsidiaries and 19 countries, Baumer is able to be close to the customers. The outstanding Baumer quality of the vast portfolio of sensors and instruments keeps the company on the road of success in tough international competition. Various expert juries awarded Baumer with national and international prizes for innovation, design and quality as a token for quality and pioneering spirit.
Multifunctional Display NE1218 for tachometer, frequency, totalizer and time/hour counter, without limits, for universal counting inputs, for tachometer and frequency, display range can be linearised, three control inputs, programmable, display stabilization filter, LED display, 5-digits, 3 colors, programmable, Min, Max functions, housing 96 x 48 mm. Manufactured part numbers open, use the search ctrl + F
|
Process displays for standard signals. Voltage input ±10 V, ±20 VDC, ±200 VDC. Voltage input ±100 mVDC for measurements by external current shunt (precision resistor). Current input ±20 mA. Display range can be linearised. LED display, 4 digits, programmable. DIN housing 48 x 24 mm. Manufactured part numbers open, use the search ctrl + F
|

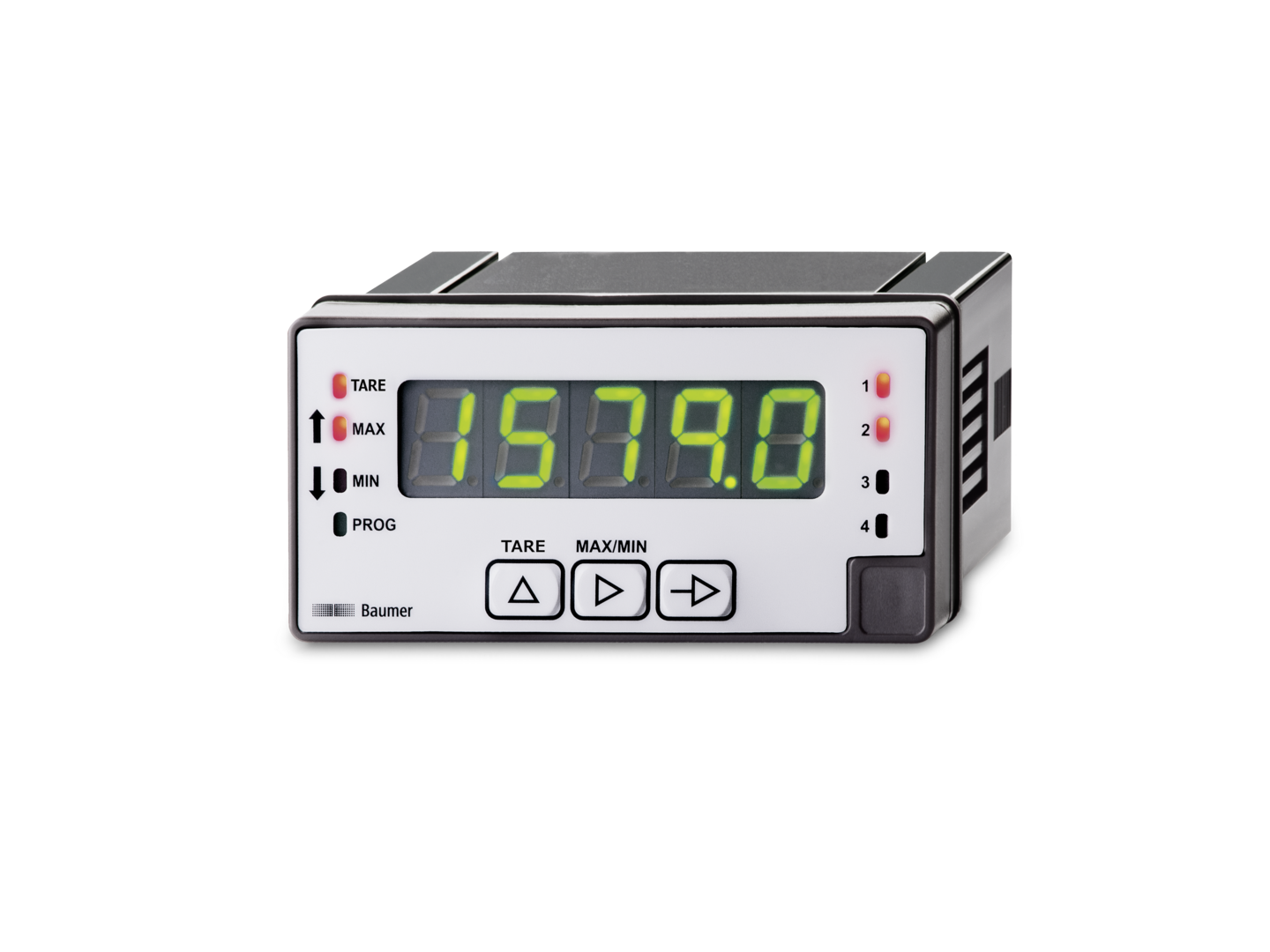

Display for standard signals, temperature, strain gauge, with 2 limits. For voltage ±10 V or current ±20 mA. For thermocouples J, K, T, N, Pt100. For weight, pressure, torsion, strain, potentiometer. Programmable characteristic curve with 11 control points. Three control inputs, programmable. Display stabilization filter. LED display, 5-digits, 3 colors, programmable, tare, Min, Max functions. With 2 relays and analog output 0...10V. DIN housing 96 x 48 mm. Manufactured part numbers open, use the search ctrl + F
|
Displays TA1200 and TA1220 are for RPM, speed, frequency. Input: NPN, PNP, Namur, TTL, 10…600 VAC. Reading as 1/s, 1/min, 1/h, programmable. Display range can be linearised. Frequency 0.01 Hz…7 kHz. Period duration measurement. LED display, 4-digits, programmable. DIN housing 48 x 24 mm. Manufactured part numbers open, use the search ctrl + F
|
