No other SCR power controller series offers the flexibility and performance of Advanced Energy's Thyro-Family line. Our solutions meet your toughest design challenges. Thyro-Family SCR power controllers ensure high product quality and reproducibility in applications ranging from simple to complex.


Available in our warehouse today
Thyro-A 2A 400-280 HFRL3
Part number 2.000.314.211
Shipment within 1-2 days.
Request quote

Our quote will always be lower than the manufacturer's price. Please send us the full part number of a device to get a quick response.



THYRO-S

info Datasheet

info Manual

info Request quote

THYRO-S

As a connection-ready thyristor switch with secure operational behavior and load monitoring, the Thyro-S (SCR) power controller switches electric loads, for example, current, voltage, or power. It can be connected to bus systems, used instand-alone operation, or used in combination with all established 2-point process controllers, PLCs, or computer systems. With simple mounting, quick commissioning, and easy operation, the Thyro-S series can be integrated easly into a wide range of applications.

  • Simple handling and small space requirements
  • Rated voltages 230 V, 400 V, 500 V
  • Rated currents 16 to 280 A
  • Integrated semiconductor fuse
  • Standard system interface for connection to an optional bus module (e.g. for PROFIBUS DP, Modbus RTU, CANopen, DeviceNet, EtherNet/IP, Modbus TCP, PROFINET)
  • LED status display
  • Operating modes 1:1, as well as 1:2, 1:3, 1:5 (e.g. for commissioning)
  • Logical signal control of 24 V (> 3 V) or standard system interface
  • Secure isolation between control and power sections
  • 3 phase design by connecting two Thyro-S units
  • Isolation between control and power sections
  • DIN rail mounting for 16 A, 30 A, 45 A, 60 A units
  • UL approval of UL 508 A (100,000 A S.C.C.R.)
  • Quality standards in accordance with ISO 9001
  • CE-compliant

THYRO-A

info Datasheet

info Manual

info Request quote

THYRO-A

Thyro-A is a plug-and-play digital thyristor controller with the following operating modes: full-wave cycle principle (TAKT), phase-control principle (VAR), and Quick-Takt-Mode (QTM, for 1 phase devices). Product features include an integrated semiconductor fuse, bus interface, and optional power regulation, as well as many monitoring functions and a mains load optimizing feature (via Thyro-Power Manager or directly in QTM operation mode). It can be operated as a stand-alone system or in combination with process controls, PLC, or automation systems via various bus interfaces (PROFIBUS, PROFINET, CANopen, DeviceNet, Modbus RTU, Modbus TCP, and EtherNet/IP).

  • Easy handling, little space
  • Rated voltages up to 600 V
  • Rated currents up to 1,500 A
  • 1, 2, and 3 phase versions (2 phase version for 3 phase load without deploying the neutral conductor)
  • Integrated semiconductor fuses
  • LED status indicators

AUTOMATION LEVEL

  • Serial design system interface for connection to an optional bus module (PROFIBUS DPV1, Modbus RTU, DeviceNet, CANopen, PROFINET, Modbus TCP/IP, EtherNet/IP) for the processing of set points and actual values as well as for status reports
  • Interface option for connection to PC software Thyro-Tool Family
  • Secure separation of control and power units

LOAD SIDE

  • High resistance against short-circuit currents and blocking voltage accommodated by the power semiconductors
  • For ohmic load as well as inductive mixed load
  • Suitable for transformer-type load due to an integrated soft-start, phase-angle firing of the first half-wave and channel separation
  • Optimized load control due to the implementation of up to 5 control types and 3 operating modes

ANALOG CONTROLLING

  • Analog set point between 0...20 mA; 0...10 V
  • Control characteristic is adjustable within the interval
  • At the dual point controller: Off = 0...3 V ON = 3...24 V

POWER SUPPLY SIDE

  • Network voltages of up to 0.43 x Unom
  • Frequency range 47 Hz to 63 Hz
  • Internal mains load optimization in the operating modes TAKT and QTM
  • Optional external network load optimization (Thyro-Power Manager)

CERTIFICATES

  • Quality standard in accordance with ISO 9001
  • Approval in accordance with UL 508
  • S.C.C.R. according to UL 508 A (100 kA short-circuit test), accredited 16 A - 350 A
  • Canadian National Standard C22.2 No. 14
  • CE conformity
  • GOST
  • RoHS conformity 5/6

THYRO-A+

info Datasheet

info Manual

info Request quote

THYRO-A+

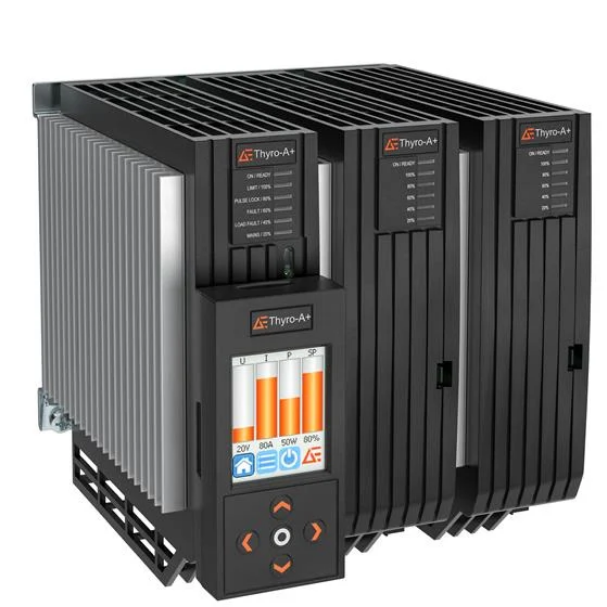

The Thyro-A+ series supports voltages from 24 to 500 V and offers a unique product scope from 16 to 650 A, available as single-, dual-, and three-phase units. With a flexible connection technology, the power controller can be connected from below and/or from above. The full graphic touch display allows a high level of intuitive unit operation. Set points and actual points as well as operating modes and more are shown in plain text. Operating modes are signalized via changing background lighting. Many communication protocols are available such as DeviceNet, Modbus RTU, PROFIBUS, and CANopen, as well as TCP/IP based communication including PROFINET, Modbus TCP, and EtherNet/IP. The series also incudes technology to compensate for system perturbations and to optmize the network load to reduce costs.

KEY FEATURES

  • Range of 24 to 500V and 16 to 650A
  • 1, 2, or 3 phase units
  • Flexible connection
  • Touch screen control
  • Set points, operating modes, and values displayed as plain text
  • Ethernet/ USB 2.0 standard
  • Optional communication via web browser
  • Optional bus modules: DeviceNet, Modbus RTU, PROFIBUS DPV1, CANOpen, PROFINET, Modbus TCP, EtherNet/IP
  • Advanced network interference reduction
  • Mains load optimization

THYRO-PX

info Datasheet

info Manual

info Request quote

THYRO-PX

The result of over 50 years of power-control expertise across a range of industries worldwide, the Thyro-PX™ SCR power controller adds new functionality to the precise, reliable performance of the Thyro-Family.

ADVANTAGES

  • Comprehensive operating and control modes
  • Easy integration into process and automation systems
  • Excellent control accuracy
  • Flexibility and expandability into specific applications
  • Easy handling
  • Mains load optimization

KEY FEATURES

  • High efficiency, wear-free operation
  • Integrated soft starting for operation with downstream transformer
  • Seven LED status indicators
  • Three self-programmable monitoring relays
  • Error memory with occurrence time recording
  • Integrated load circuit monitoring
  • IP20 protection
  • Uses Thyro-PX 2PX and Thyro-PX 3PX as two or three single-phase units
  • Digital I/O modules
  • Integrated semiconductor fuses
  • Secure separation between power and control section
  • Elapsed hour meter
  • Energy meter, resettable, in kWh
