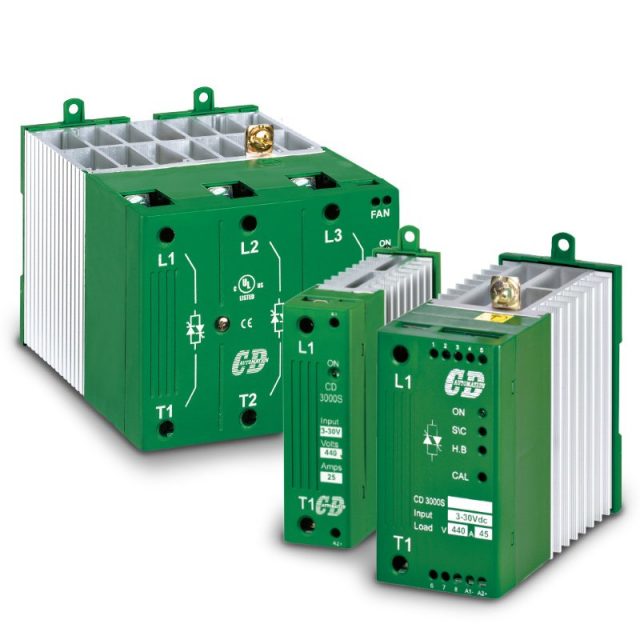

Thyristor Power Controller CD3000S / PM3000S

Our quote will always be lower than the manufacturer's price. Please send us the full part number of a device to get a quick response.


CD3000SPM3000S

CD3000S
PM3000S

Made in Germany Made in Italy

Example of Full Part Number:
CD3200/150A/480V/480V/12:24V/SSR/ZC/NF/HB
REVO RCL400-42APWY2021

Ideal for:

  • Most applications with Short Wave Infrared (SWIR)
  • Most applications with Silicone Carbide and KanthalSuper
  • Most applications with Inductive load types

Benefits and Features:

  • RS485 Comm. MODBUS Protocol Standard
  • Frontal Key Pad to configure the unit and to read V,I and Power
  • Configurablity via RS485, USB Port and frontal Key Pad
  • Microprocessor based electronic circuit fully isolated from power
  • Universal input signal: RS485,Pot, Analog and SSR
  • Configurable Control Mode: V, I, V2 and VxI
  • Current Limit Std adjustable from front unit
  • Profiling current limit via analog input
  • Heather Break alarm to diagnose partial or total load failure and Thyristor Short circuit
  • Digital input configurable
  • Fuse and Fuse Holder Standard
  • Current transformer integrated in Fuse Holder
  • Comply with EMC, cUL pending
  • IP20 Protection
  • DIN RAIL mounting

Specification:

  • Thyristor units up to 90A
  • Applicable for resistive loads and infrared lamp
  • Zero crossing firing available with logic input signal (SSR)
  • Constant current drain with SSR input
  • Analog input 4÷20mA or 0÷10V with burst firing 4, 8 or 16 cycle at 50% power demand, is available as an option
  • Heater break alarm (HB) to diagnose partial or total load failure and short circuit on thyristor. Available as an option
  • Side by side mounting
  • Special design for heatsink with high dissipation
  • IP20 protection
  • Comply with EMC specification CE and cUL Catalog
DS1015-40… DS1025-40… DS1035-40… DS1045-40…
DS1060-40… DS1090-40… DS2015-40… DS2025-40…
DS2035-40… DS2045-40… DS2060-40… DS2090-40…
DS3015-40… DS3025-40… DS3035-40… DS3045-40…
DS3060-40… DS3090-40… DS1015-44… DS1025-44…
DS1035-44… DS1045-44… DS1060-44… DS1090-44…
DS2015-44… DS2025-44… DS2035-44… DS2045-44…
DS2060-44… DS2090-44… DS3015-44… DS3025-44…
DS3035-44… DS3045-44… DS3060-44… DS3090-44…
Following models are available from stock at half price:
CD3000M 1PH/15A/440V/480V/170:265V/0-10V/PA/EF
CD3000M 1PH/25A/440V/480V/170:265V/0-10V/PA/EF
