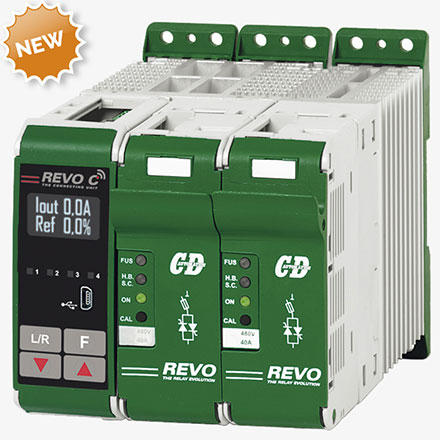

REVO C-2РH
Relay C-2PH

Request quote
Made in Germany    Made in Italy

The REVO C-2PH series of three-phase power regulators (with two phase control) is a new generation of regulators with a wide range of communication protocols for data transmission - Modbus, Ethernet, Profibus and USB, as well as the possibility of configuration and technical support from the manufacturer via wireless WiFi channel via smartphone.

REVO-C







REVO-C

REVO C-2PH three-phase thyristor controllers with two phase control are used to control a three-phase load connected by a three-wire circuit in a "star without neutral" or "delta", while the third phase is controlled automatically. This economic decision has the best parity of the price, possibilities and quality and is applied everywhere, especially where on manufacture there are many three-phase heaters.

Ideal for:

  • Normal Resistance
  • Short, Medium & Long Wave IR load types

Benefits and Features:

  • RS485 Comms
  • MODBUS Protocol Standard
  • Frontal Key Pad to configure the unit and to read V,I and Power
  • Configurablity via RS485, USB Port and frontal Key Pad
  • Microprocessor based electronic circuit fully isolated from power
  • Universal input signal: RS485,Pot, Analog and SSR
  • Configurable Control Mode: V, I, V2 and VxI
  • Heather Break alarm to diagnose partial or total load failure and Thyristor Short circuit
  • Digital input configurable
  • Fuse and Fuse Holder Standard
  • Current transformer integrated in Fuse Holder
  • Comply with EMC, cUL pending
  • IP20 Protection
  • DIN RAIL mounting

Specification:

  • Single Phase
  • 24Vac to 690Vac Supply
  • DC logic (SSR)
  • 4-20mA or 0-10V DC linear inputs
  • 10K Pot or RS485 Comms input
  • Zero Crossing
  • Single Cycle
  • Burst Firing
  • Soft Start + Burst Firing
  • Delayed Triggering + Burst Firing
  • Phase Angle, Soft Start + Phase Angle

Single-phase regulators REVO C 2PH are available in a range of 14 basic versions, each with a large number of options, interfaces, additional and service functions. All this variety is encrypted in the complete regulator order number.

RC2030-42A... RC2030-45A... RC2030-42W... RC2030-45W...
RC2035-42A... RC2035-45A... RC2035-42W... RC2035-45W...
RC2040-42A... RC2040-45A... RC2040-42W... RC2040-45W...
RC2060-42A... RC2060-45A... RC2060-42W... RC2060-45W...
RC2075-42A... RC2075-45A... RC2075-42W... RC2075-45W...
RC2090-42A... RC2090-45A... RC2090-42W... RC2090-45W...
RC2120-42A... RC2120-45A... RC2120-42W... RC2120-45W...
RC2150-42A... RC2150-45A... RC2150-42W... RC2150-45W...
RC2180-42A... RC2180-45A... RC2180-42W... RC2180-45W...
RC2210-42A... RC2210-45A... RC2210-42W... RC2210-45W...
RC2300-42A... RC2300-45A... RC2300-42W... RC2300-45W...
RC2400-42A... RC2400-45A... RC2400-42W... RC2400-45W...
RC2450-42A... RC2450-45A... RC2450-42W... RC2450-45W...
RC2500-42A... RC2500-45A... RC2500-42W... RC2500-45W...
RC2600-42A... RC2600-45A... RC2600-42W... RC2600-45W...
RC2700-42A... RC2700-45A... RC2700-42W... RC2700-45W...
RC2800-42A... RC2800-45A... RC2800-42W... RC2800-45W...
Following models are available from stock at half price:
CD3000M 1PH/15A/440V/480V/170:265V/0-10V/PA/EF
CD3000M 1PH/25A/440V/480V/170:265V/0-10V/PA/EF
