REVO C-3РH
Relay C-3PH

Request quote
Made in Germany    Made in Italy

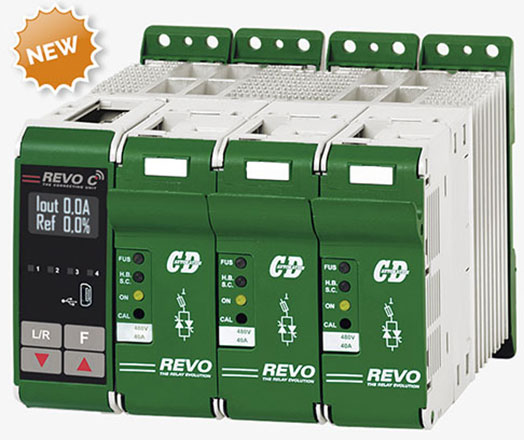

The REVO C-3PH series of three-phase power regulators is a new generation of regulators with a wide range of communication protocols for data transmission - Modbus, Ethernet, Profibus and USB, as well as the possibility of configuration and technical support from the manufacturer via wireless WiFi channel via smartphone.

REVO-C







REVO-C

Three-phase regulators REVO C-3PH are designed to regulate the load power of all types. The regulators are equipped with a display and interfaces, have analogue and logic control inputs as well as various thyristor switching technologies.

Ideal for:

  • Normal Resistance
  • Short, Medium & Long Wave IR load types

Benefits and Features:

  • RS485 Comms
  • MODBUS Protocol Standard
  • Frontal Key Pad to configure the unit and to read V,I and Power
  • Configurablity via RS485, USB Port and frontal Key Pad
  • Microprocessor based electronic circuit fully isolated from power
  • Universal input signal: RS485,Pot, Analog and SSR
  • Configurable Control Mode: V, I, V2 and VxI
  • Heather Break alarm to diagnose partial or total load failure and Thyristor Short circuit
  • Digital input configurable
  • Fuse and Fuse Holder Standard
  • Current transformer integrated in Fuse Holder
  • Comply with EMC, cUL pending
  • IP20 Protection
  • DIN RAIL mounting

Specification:

  • Single Phase
  • 24Vac to 690Vac Supply
  • DC logic (SSR)
  • 4-20mA or 0-10V DC linear inputs
  • 10K Pot or RS485 Comms input
  • Zero Crossing
  • Single Cycle
  • Burst Firing
  • Soft Start + Burst Firing
  • Delayed Triggering + Burst Firing
  • Phase Angle, Soft Start + Phase Angle

Single-phase regulators REVO C 3PH are available in a range of 15 basic versions, each with a large number of options, interfaces, additional and service functions. All this variety is encrypted in the complete regulator order number.

RC3030-42A... RC3030-45A... RC3030-42W... RC3030-45W...
RC3035-42A... RC3035-45A... RC3035-42W... RC3035-45W...
RC3040-42A... RC3040-45A... RC3040-42W... RC3040-45W...
RC3060-42A... RC3060-45A... RC3060-42W... RC3060-45W...
RC3075-42A... RC3075-45A... RC3075-42W... RC3075-45W...
RC3090-42A... RC3090-45A... RC3090-42W... RC3090-45W...
RC3120-42A... RC3120-45A... RC3120-42W... RC3120-45W...
RC3150-42A... RC3150-45A... RC3150-42W... RC3150-45W...
RC3180-42A... RC3180-45A... RC3180-42W... RC3180-45W...
RC3210-42A... RC3210-45A... RC3210-42W... RC3210-45W...
RC3300-42A... RC3300-45A... RC3300-42W... RC3300-45W...
RC3400-42A... RC3400-45A... RC3400-42W... RC3400-45W...
RC3450-42A... RC3450-45A... RC3450-42W... RC3450-45W...
RC3500-42A... RC3500-45A... RC3500-42W... RC3500-45W...
RC3600-42A... RC3600-45A... RC3600-42W... RC3600-45W...
RC3700-42A... RC3700-45A... RC3700-42W... RC3700-45W...
RC3800-42A... RC3800-45A... RC3800-42W... RC3800-45W...
Following models are available from stock at half price:
CD3000M 1PH/15A/440V/480V/170:265V/0-10V/PA/EF
CD3000M 1PH/25A/440V/480V/170:265V/0-10V/PA/EF
